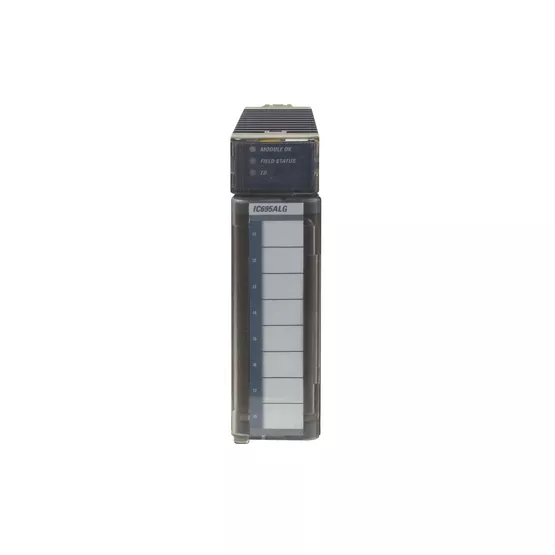

Non-Isolated Analog Current/Voltage Output module, IC695ALG728, provides eight configurable voltage or current output channels with HART version 5.0 communications capability on each channel. The module has two internal HART modems. Four single-ended channels are multiplexed with each HART modem.Analog channels can be configured for these output ranges:? Current: 0 to 20mA, 4 to 20mA? Voltage: ±10 Vdc, 0 to 10 VdcChannels that will use HART communications must be configured for the 4-20mA range.
Specifications
| Brand Name | Emerson | Item Name | Output Module |
| Type | Analog Voltage/Current | Voltage Rating | -10 to 10 V |
| Output | 8 Channel, 20 mA | Resolution | 9 Bit |
| Connection | Screw |
