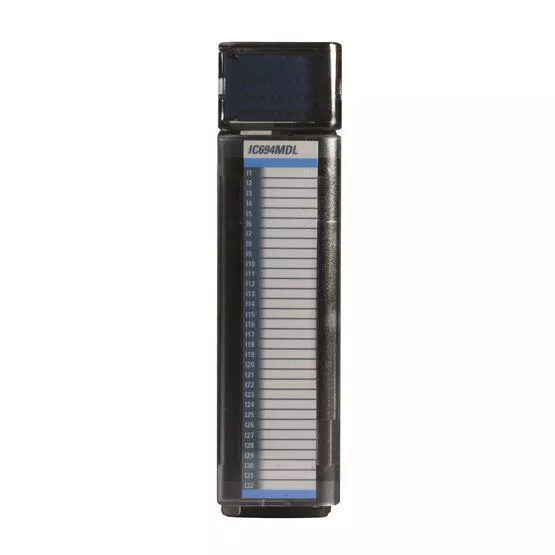

The 8 Amp Isolated Relay Output module, IC694MDL931, provides four normally-closed and four Form C relay circuits for controlling output loads provided by the user. The output switching capacity of each circuit is 8 Amps. Each output relay is isolated from the other relays, and each relay has a separate common power output terminal. The relay outputs can control a wide range of load devices, such as: motor starters, solenoids, and indicators.The user must supply the AC or DC power to operate the field devices. Individual numbered LEDs show the ON/OFF status of each output point. There are no fuses on this module. The red bands on the label show that MDL931 is a high-voltage module. This module can be installed in any I/O slot in an RX3i system.Module does not support insertion into or removal from an RX3i Universal Backplane which is under power.
Specifications
| Brand Name | Emerson | Item Name | Output Module |
| Type | Discrete | Voltage Rating | 120/240 VAC, 24 VDC |
| Output | Isolated 8-Point Relay 5 – 30 VDC, 5 – 250 VAC | Amperage Rating | 8 A |
| Frequency Rating | 50/60 Hz | Response Time | 15 Millisecond On, 15 Millisecond Off |
| Connection | Terminal Block | For Use With | RX3i PACSystems Controller |
