EMERSON IC694MDL241 24V 16-Point Positive/Negative Logic RX3i AC/DC Voltage Input Module

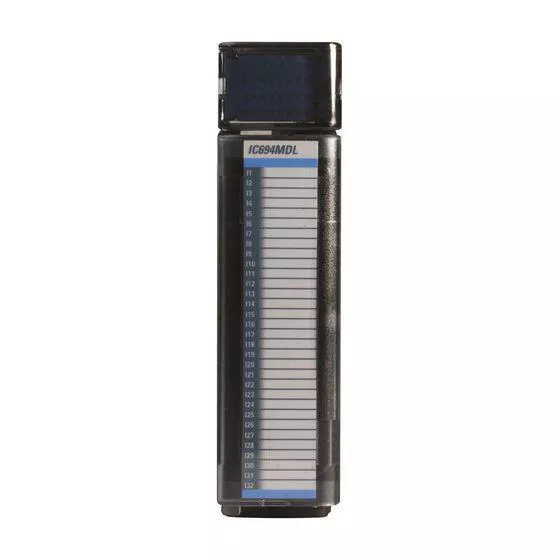

The 24Vac/Vdc 16-Point C Positive/Negative Logic Input module, IC694MDL241, provides sixteen input points in one group with a common power inputterminal. This module can be used with AC or DC field inputs. In DC mode, itcan be wired for either positive or negative logic. Input characteristics arecompatible with a wide range of input devices, such as pushbuttons, limitswitches, and electronic proximity switches. Current passing into an inputpoint results in a logic 1 in the input status table (%I).Power to operate AC and DC input devices must be supplied by the user.Sixteen green LEDs indicate the ON/OFF status of points 1 through 16. Theblue bands on the label show that MDL241 is a low-voltage module.This module can be installed in any I/O slot in an RX3i system.Module supports insertion into and removal from an RX3i Universal Backplane which is under power.
