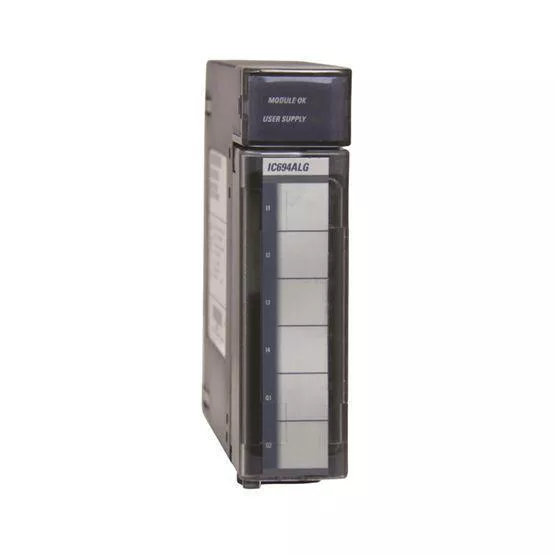

RX3i IO is designed for mission critical discrete and process applications. The rack-based IO offers advanced diagnostics and outstanding flexibility, with a wide range of standard and advanced IO.FEATURES:- High-speed and patented technology for faster throughput- Hot swap capability- Analog Output Count & Type: 8 Channel; 0 V to +10 V, -10 V to +10 V, 0-20 mA, 4-20 mA- Current Consumption: 110 mA @ 5 VDC; 315 mA -User Supplied 24 VDC
Specifications
| Brand Name | Emerson | Item Name | Output Module |
| Type | Analog Voltage/Current | Voltage Rating | 0 – 10 V |
| Output | 8 Channel | Series/Model | RX3i |
| Amperage Rating | 0 – 20 mA, 4 – 20 mA | Resolution | 16-Bit Analog Output |
| Connection | Screw |
