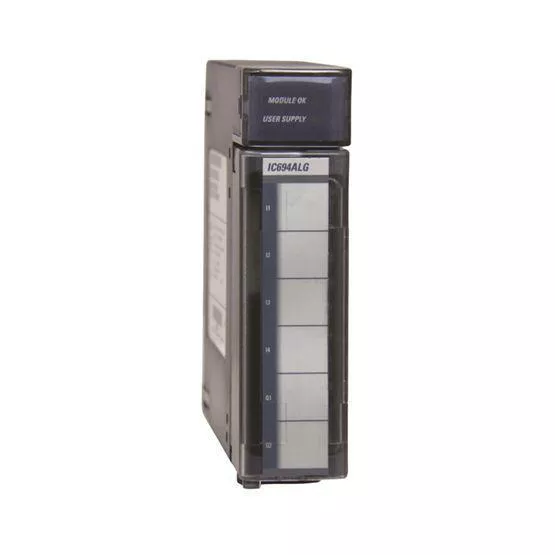

The 16–Channel Analog Voltage Input module, IC694ALG222, provides sixteen single-ended or eight differential input channels. Each channel can be configured using the configuration software for either of two input ranges:? 0 to 10 V (unipolar), default? -10 to +10 V (bipolar)High and Low alarm limits can be configured for both ranges.This module can be installed in any I/O slot of an RX3i system.Revision –BA and later supports insertion into and removal from an RX3i Universal Backplane which is under power.
Specifications
| Brand Name | Emerson | Item Name | Input Module |
| Type | Analog Voltage, High Density | Voltage Rating | 0 – 10 V |
| Input | 16 Single Ended Channel, 8 Differential Channel | Frequency Rating | 200 Hz |
| Resolution | 12-Bit Analog Input | Response Time | 13 Millisecond |
| Connection | Screw | Application | For Control Processes such as Flow, Temperature and Pressure |
