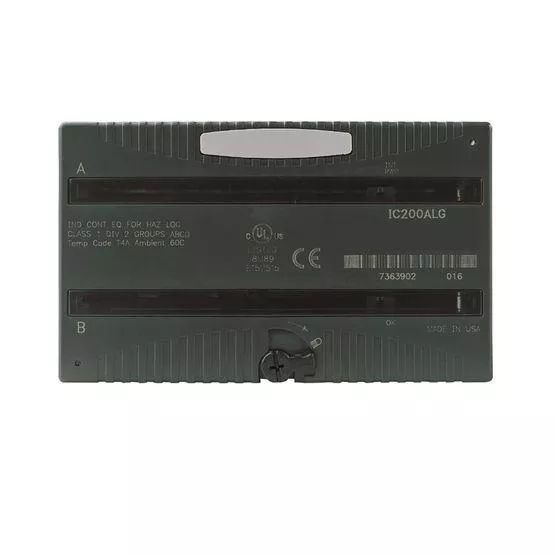

The Analog Input Module with 8 isolated inputs is an intelligent module, that accepts input signals from up to 8 analog devices and provides, input data with 16 bits of resolution., In current mode, a separate power supply may be required for isolated, inputs. Module features include:, Eight isolated 4-20mA current input channels, Sixteen-bit converter resolution, Open wire detection, High-accuracy factory calibration
Specifications
| Brand Name | Emerson | Item Name | Input Module |
| Type | Analog | Input | 8 Isolated |
| Resolution | 16 Bit | Connection | Screw |
