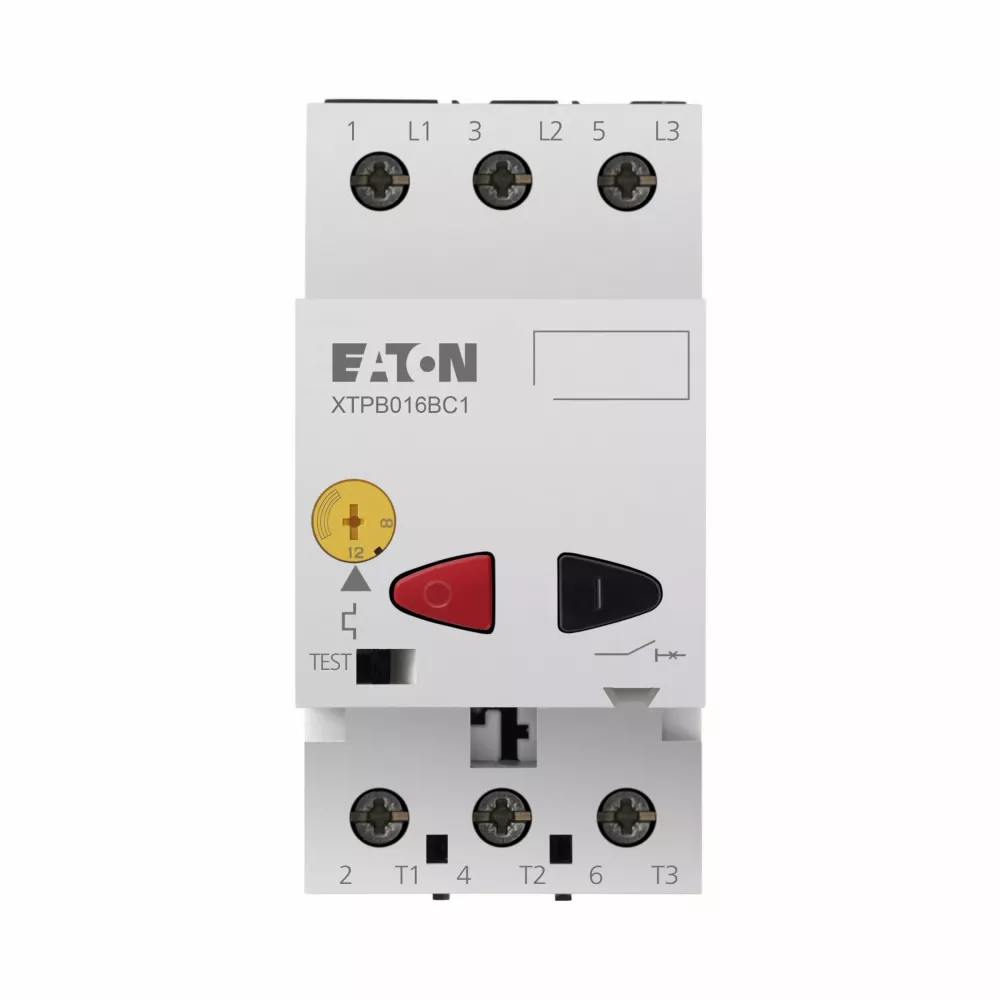

XT manual motor protectors are selected based on the overload current range required for a given motor. This current range is determined from the motor full load ampere rating and motor service factor usually found on the motor nameplate. Type 1 and type 2 coordination motor protective device with thermal and magnetic trip.
Specifications
| Brand Name | Cutler Hammer | Item Name | Manual Motor Protector |
| Type | Push Button | Voltage Rating | 220 – 690 V |
| Amperage Rating | 16 A | Short-Circuit Current | 50 kA at 400 VAC |
| Dimensions | 45 mm W x 90.5 mm D x 93 mm H | Series/Model | XT |
| Power Rating | 4 kW at 230 V, 7.5 kW at 400 V | Number of Poles | 3 |
| Terminal Connection | Screw | Degree of Protection | IP20 |
| Standards | UL 508,CSA Std. C22.2 | Application | For Motor and Power Control Equipment |
| UPC | 015082833903 |
