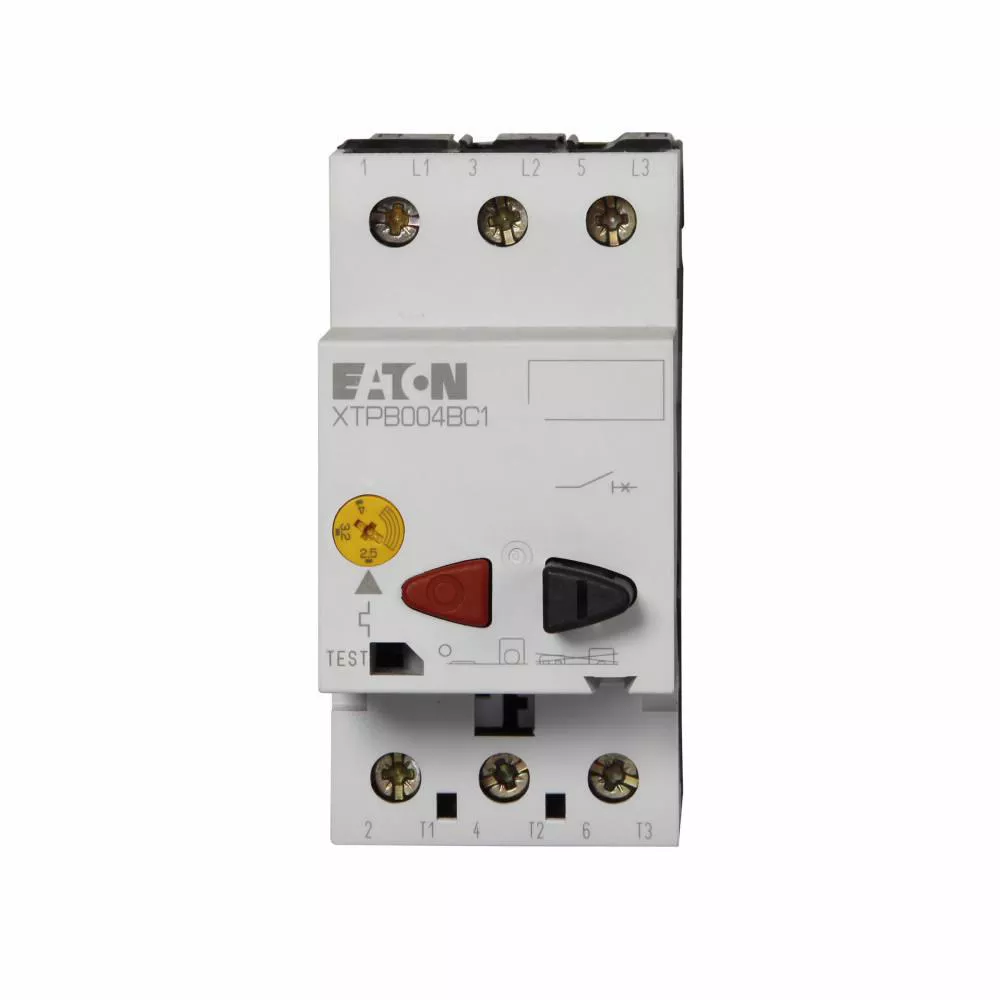

XT manual motor protectors are selected based on the overload current range required for a given motor. This current range is determined from the motor full load ampere rating and motor service factor usually found on the motor nameplate. Type 1 and type 2 coordination motor protective device with thermal and magnetic trip.
Specifications
| Brand Name | Eaton | Item Name | Pushbutton Manual Motor Protector |
| Type | Magnetic | Voltage Rating | 220 – 690 V |
| Amperage Rating | 2.5 – 4 A | Short-Circuit Current | 56 A |
| Frame Size | B | Trip Class | 10 |
| Dimensions | 45 mm W x 85 mm D x 93 mm H | Power Rating | 0.75 kW, 1.5 kW |
| Terminal Connection | Screw | Standards | UL 508,CSA Std. C22.2 |
| Application | Commercial / Institutional Buildings / Structures – Safety and Security Systems | UPC | 015082784823 |
