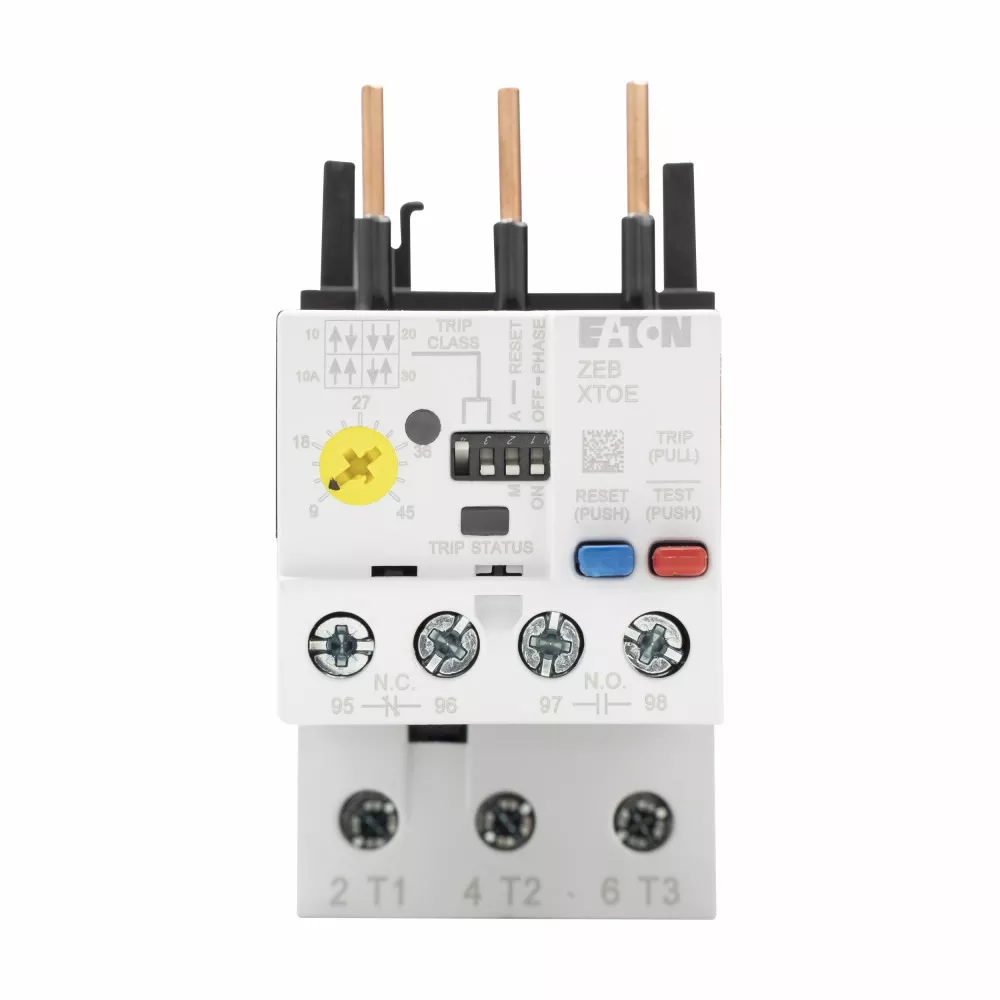

XT Electronic overload relays for direct mount to XT contactors.
Specifications
| Brand Name | Eaton | Item Name | IEC Electronic Overload Relay |
| Type | Electronic Overload Relay | Class | Class 5, 10, 20, 30 |
| Contact Configuration | 1 NO, 1 NC | Number of Poles | 3 |
| Amperage Rating | 9 – 45 A | Frame Size | D, 55 mm |
| Dimensions | 1.8000 IN X 1.4200 IN X 4.3000 IN | Mounting | Direct |
| Temperature Rating | -13 to 149 °F | Standards | EN 60947, UL Listed, IEC 60947, CSA Certified, CE, RoHS, ATEX Compliant |
| Application | Commercial / Institutional Buildings / Structures – Commercial / Institutional Buildings / Structures – Other | UPC | 786685416533 |
