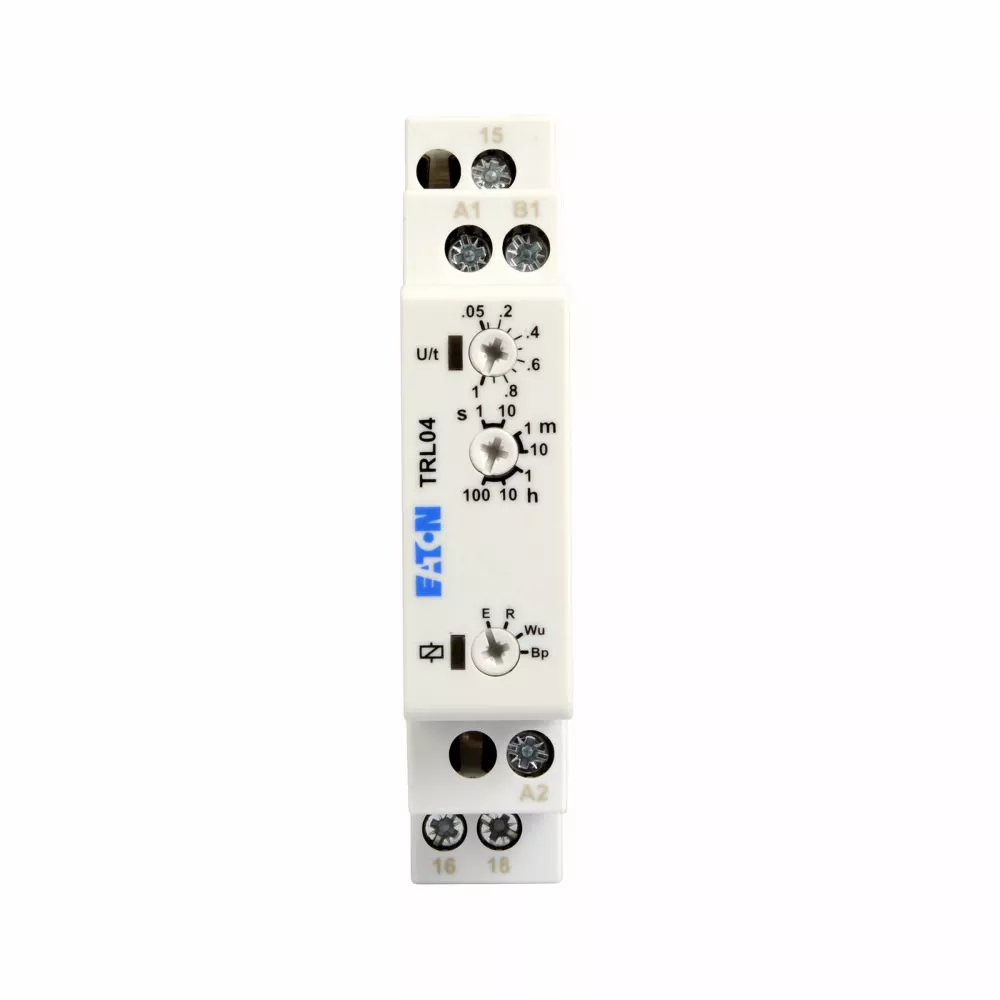

Relay timing universal features Multiple user-selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units, Compact, DIN rail mountable case reduces panel size, Advanced LED indication makes troubleshooting easy, Staggered terminal locations allow access to lower-level terminals after wiring.
Specifications
| Brand Name | Cooper Industries | Item Name | Time Delay Relay |
| Voltage Rating | 24 – 240 VAC/DC | Frequency Rating | 50/60 Hz |
| Contact Configuration | SPDT | Type | Timing relay |
| Series/Model | TR | Connection | Screw |
| Mounting | Compact DIN Rail | Degree of Protection | IP40 |
| Dimensions | 17.5 mm W x 65 mm D x 87 mm H | Standards | CSA Certified, cULus Listed, CE Marked, TUV |
| Application | Automation and Logic Control Equipment | UPC | 786685313573 |
