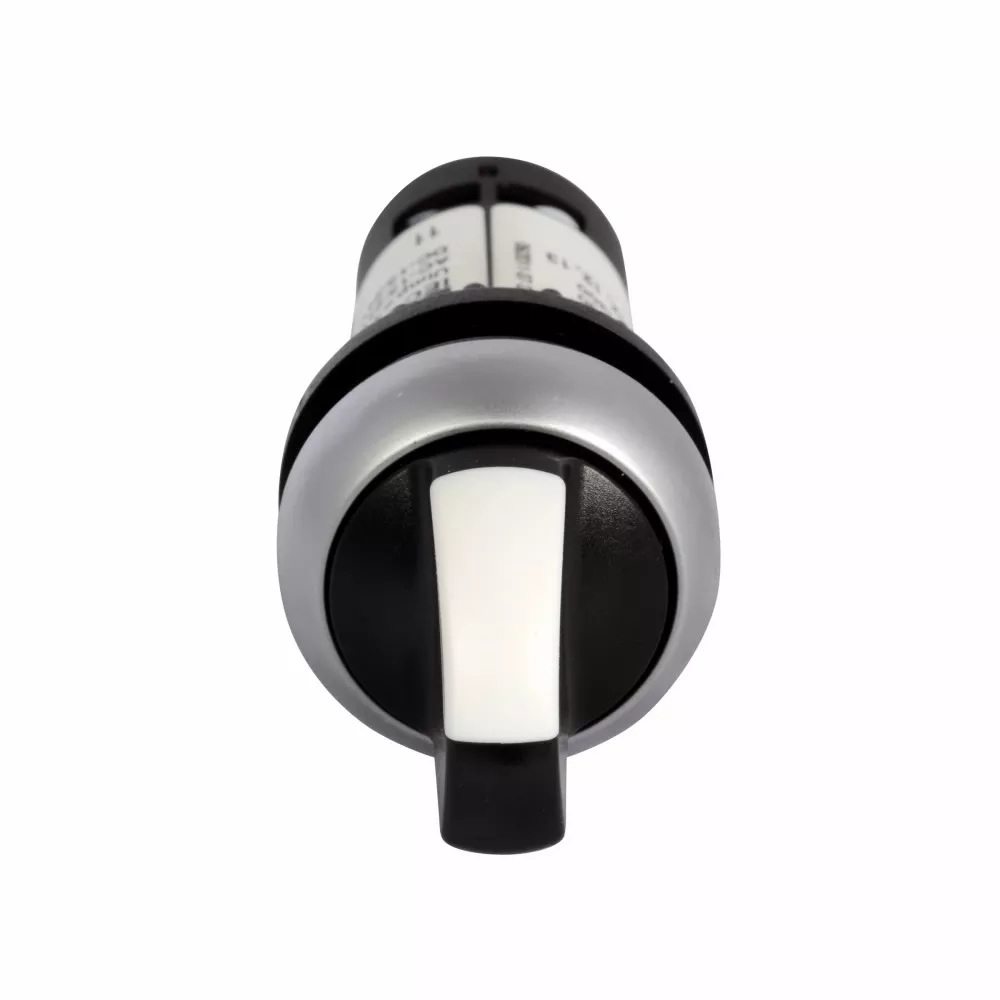

C22, 22.5 mm Compact Pushbutton Selector Switch, Non-Illuminated, Knob, Silver Bezel, Maintained, 60° V Position, Button: Button: Black/White, 2NO, 3-positionWith over 20 variations of operation and 8 varieties of key codes, the C22 line offers a very complete line of selector switches. Features: ? Selector switch (non-keyed) rated for 1 million mechanical operations ? Momentary selector switches are field convertible from momentary to maintained Protection Type: ? IP65 ? NEMA 4X, 13
Specifications
| Brand Name | Eaton | Item Name | Non-Illuminated Selector Switch with Bezel |
| Type | Selector Switch | Size | 22.5 mm |
| Voltage Rating | 0 – 230 V | Number of Positions | 3 |
| Action | Maintained | Actuator Type | Variable Position Knob |
| Contact Configuration | 2 NO | Color | Black/White Actuator, Silver Bezel |
| Series/Model | C22 | Degree of Protection | IP65 |
| Terminal Type | Screw | Bezel Material | Plastic |
| Dimensions | 1.1700 IN X 1.1700 IN X 2.8300 IN | Standards | UL Listed, CSA Certified, IEC 60947, EN 60947, DIN VDE 0600 |
| Application | For Automation and Logic Control Equipment | UPC | 015081294835 |
