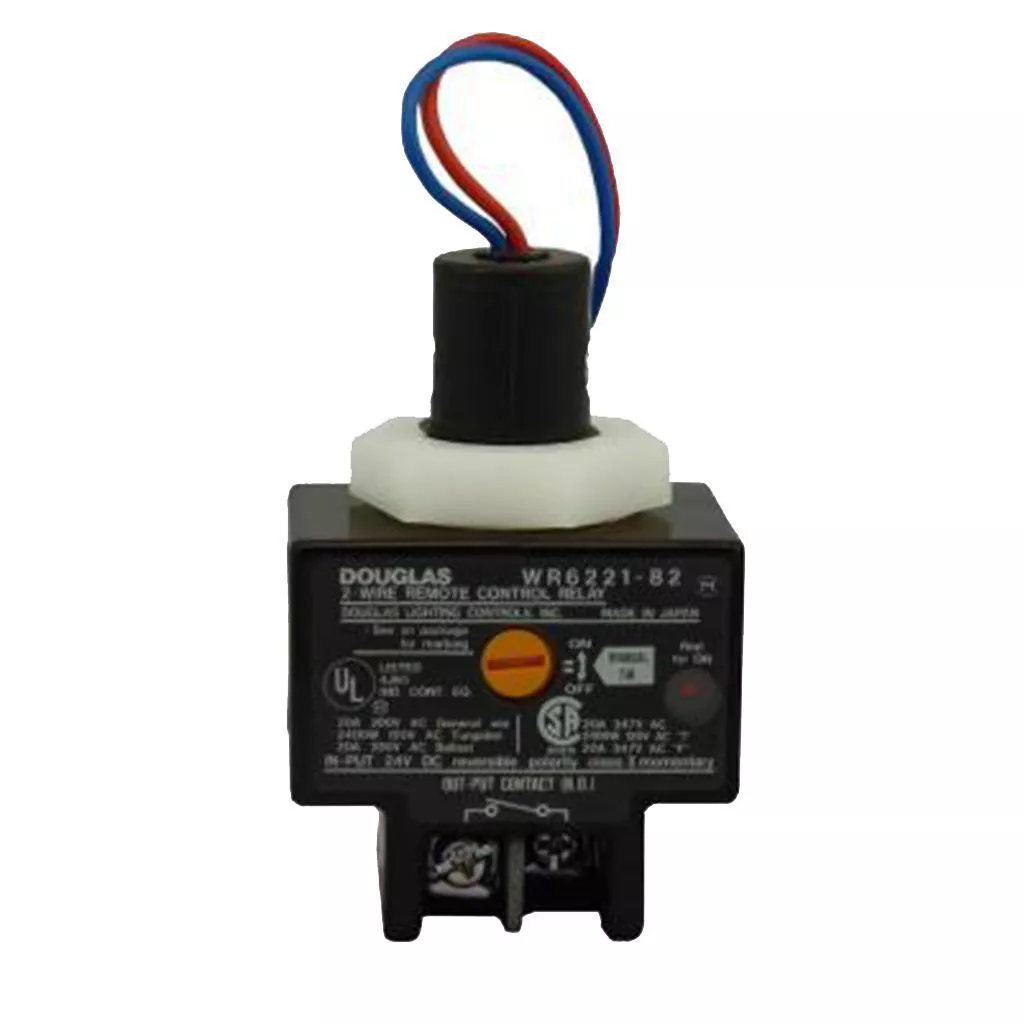

Knockout mount relay, 1 pole. Branch circuit, 20 Ampere latching relay. Screw terminals on load side and colored pre-stripped leads on control side. Manual operation lever and indicator built-in for convenient operation and status check at the panel. Relay fits to standard 1/2 inch pipe knock out (7/8 in hole).
Specifications
| Brand Name | Douglas Lighting Controls | Item Name | Knockout Relay |
| Type | 2-Wire | Voltage Rating | 24 V |
| Amperage Rating | 20 A | Frequency Rating | 50/60 Hz |
| Coil Rating | 120 – 347 V | Number of Poles | 1 |
| Terminal Connection | Screw | Conductor Size | 20 – 16 AWG |
| Indicator Type | On/Off | Mounting | 1/2 in Knockout |
