Product Description

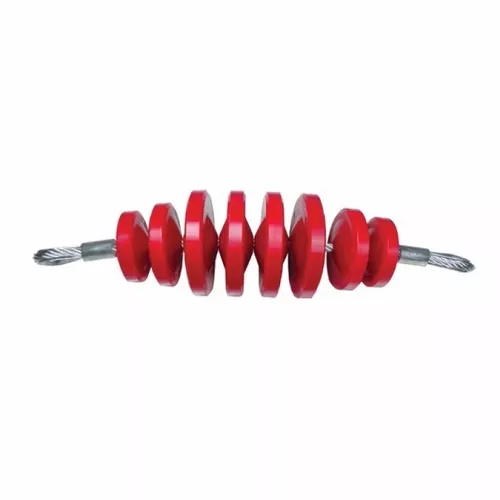

DCD 08500-880 Poly Duct Checker™ 8 inchDia, Sched.80 DuctDCD 08500-880 Poly Duct Checker™ 8 inchDia, Sched.80 DuctPart 08500-880 DescriptionPoly Duct Checker™ 8 inchDia, for Sched.80Nominal Duct Size8 inch Schedule 80Maximum Disc Diameter6.86 inchMinimum Bend Radius5-1/2 inch est.Length22.5 inch3:1 Safe Working Load4,800 lbUltmate Load14,400 lbWeight9.30 lbThe Poly Duct Checker™ is designed to ensure the duct bore is clear before installing the cable or other utility. Following initial installation of the ducting, it is often found that debris or partial collapse of the duct will impede installation of the cable. The discs are manufactured from high density polyurethane giving them the toughness to clear the duct without scraping or scratching the bore walls. The discs are spaced with gaps to allow passage through tight bends. The wire rope running through the mandrel is high quality, galvanized wire. Check the inside diameter of the ducting before selecting the product
