Product Description

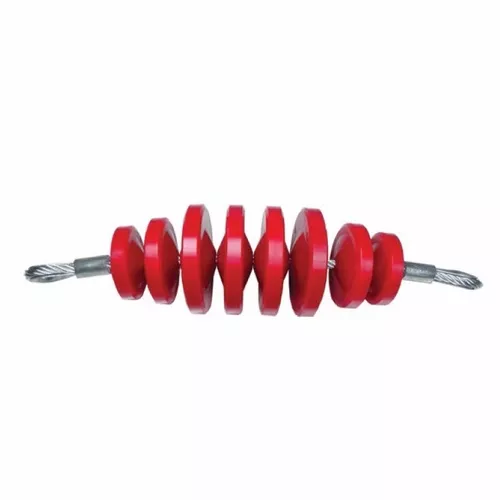

DCD 08500-840 Poly Duct Checker™8 inchDia, Sched.40 DuctDCD 08500-840 Poly Duct Checker™8 inchDia, Sched.40 DuctPart 08500-840DescriptionPoly Duct Checker™8 inchDiameterSched 40 DuctNominal Duct Size8 inch Schedule 40Maximum Disc Diameter7.40 inchMinimum Bend Radius5-1/2 inch est.Length22.5 inch3:1 Safe Working Load4,800 lbUltmate Load14,400 lbWeight11.00 lbThe Poly Duct Checker™ is designed to ensure the duct bore is clear before installing the cable or other utility. Following initial installation of the ducting, it is often found that debris or partial collapse of the duct will impede installation of the cable. The discs are manufactured from high density polyurethane giving them the toughness to clear the duct without scraping or scratching the bore walls. The discs are spaced with gaps to allow passage through tight bends. The wire rope running through the mandrel is high quality, galvanized wire. Check the inside diameter of the ducting before selecting the product
