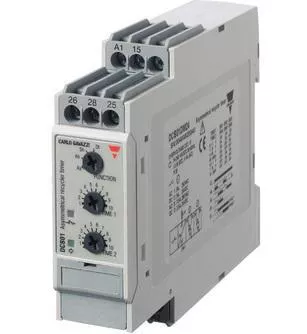

Carlo Gavazzi DCB01 Timers, Asymmetrical Recycler. Combined function timer with asymmetrical recycler, one shot time and two state delay on operate functions. Individual selection of the time ranges from 0.1 s to 100 h. For mounting on DIN-rail (DCB01) or Plug-in (PCB01).
Specifications
| Brand Name | Carlo Gavazzi | Item Name | Timing Relay |
| Type | Multi-Function | Voltage Rating | 24 – 240 VAC/VDC |
| Contact Rating | 8 A at 250 VAC, 5 A at 24 VDC (Resistive), 2.5 A at 250 VAC, 2.5 A at 24 VDC (Inductive) | Contact Configuration | SPDT |
| Number of Poles | 1 | Terminal Connection | Screw |
| Series/Model | DCB01 | Power Rating | 1.5 W |
| Contact Material | Silver Tin Oxide | Dielectric Strength | 2 kVAC Dielectric Voltage, 4 kV Rated Impulse Withstand Voltage |
| Operating Cycles | 30000000 Mechanical, 100000 Electrical | Operate Time | 0.1 sec – 100 hr |
| Release Time | 200 Millisecond | Indicator Type | LED |
| Dimensions | 22.5 mm W x 99.5 mm D x 80 mm H | Mounting Type | DIN Rail |
| Degree of Protection | IP20 | Temperature Rating | -20 to 60 °C |
| Environmental Conditions | -30 to 80 °C Storage | Standards | UL Listed, CSA Certified, CE |
