Product Description

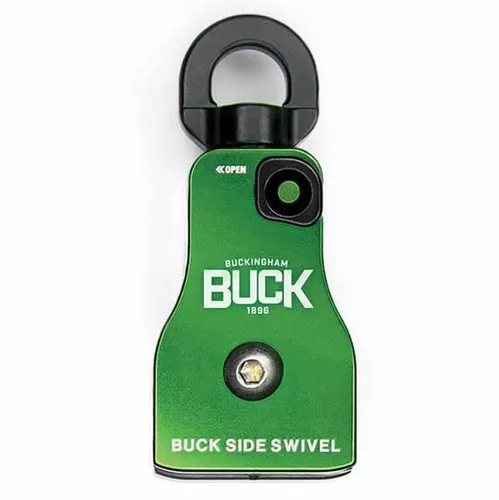

BUCKINGHAM 50071B1 5/8″ BUCK SIDE SWIVEL SINGLEBUCKINGHAM 50071B1 5/8″ BUCK SIDE SWIVEL SINGLEThe Buck Side Swivel™ is a heavy-duty aluminum single sheave pulley that has a 5/8″ diameter rope capacity with a 2500 lbf. working load limit. The “Side Swivel” late allows rope to be installed/removed without disconnecting it from the anchor point.Specially designed side plates are ideal for use with progress capture prusiks. Swivel eye prevents twisting of ropes. Ideal for building mechanical advantage with the OX BLOCK™.Part Number:50071B1Weight:1.6 lbLength:7″ (178mm)Width:3″ (76mm)Material:AluminumDiameter of Eye:Swivel Eye – 1″Breaking Strength:MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN)Other:Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm)
