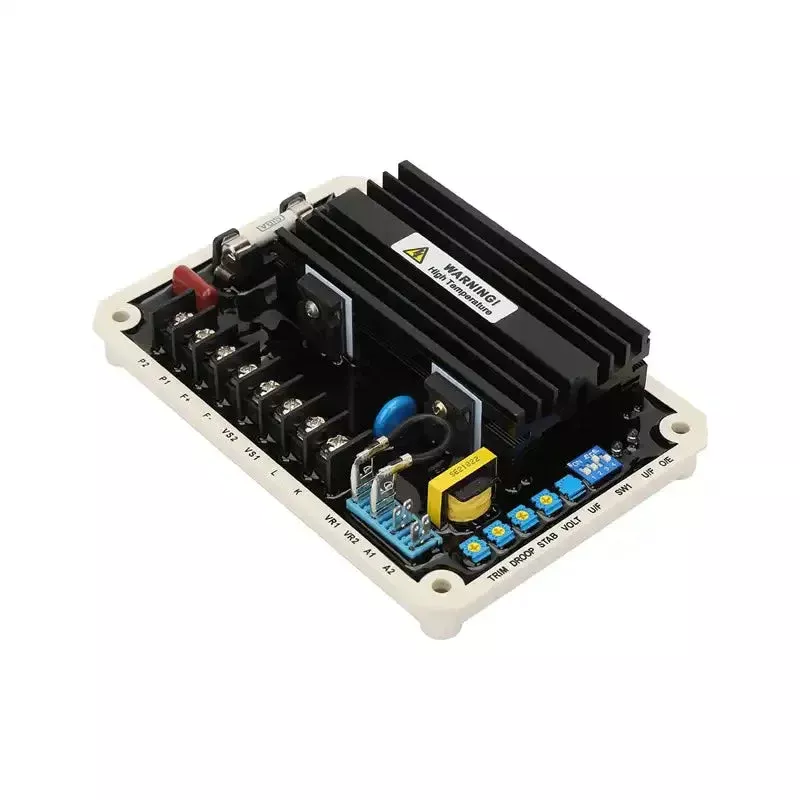

Automatic Voltage Regulator AVR EA16A for Kutai Generator
Description:Sensing Input Voltage170 ~ 510 VAC, Single Phase 2 wires (Voltage is DIP Switch selectable) Frequency50 / 60 Hz, DIP Switch selectablePower Input Voltage60 ~ 300 VAC, Single Phase 2 wiresOutput VoltageMax. 90 VDC @ 240 VAC inputCurrent Continuous 16AIntermittent20A for 10 secResistance Min. 5 ohmVoltage Regulation <0.5% ( with 4% engine governing )Voltage Build-upResidual voltage at AVR terminal> 5 VACThermal Drift0.03% per C change in AVR ambientLoad Current Compensation1A or 5A Max. 7% @ PF0.5 DIP Switch SelectableAnalogue Voltage InputMax. 5VDC. 10% @ 3VDCOver Excitation ProtectionMax Output DCV 95% 20 SecExternal Volts Adjustment 5% with 2K ohm 1 watt trimmerUnit Power DissipationMax. 10 wattUnder Frequency Protection ( Factory Setting )50/60 Hz DIP SW selectableSoft Start Ramp Time2 sec.
