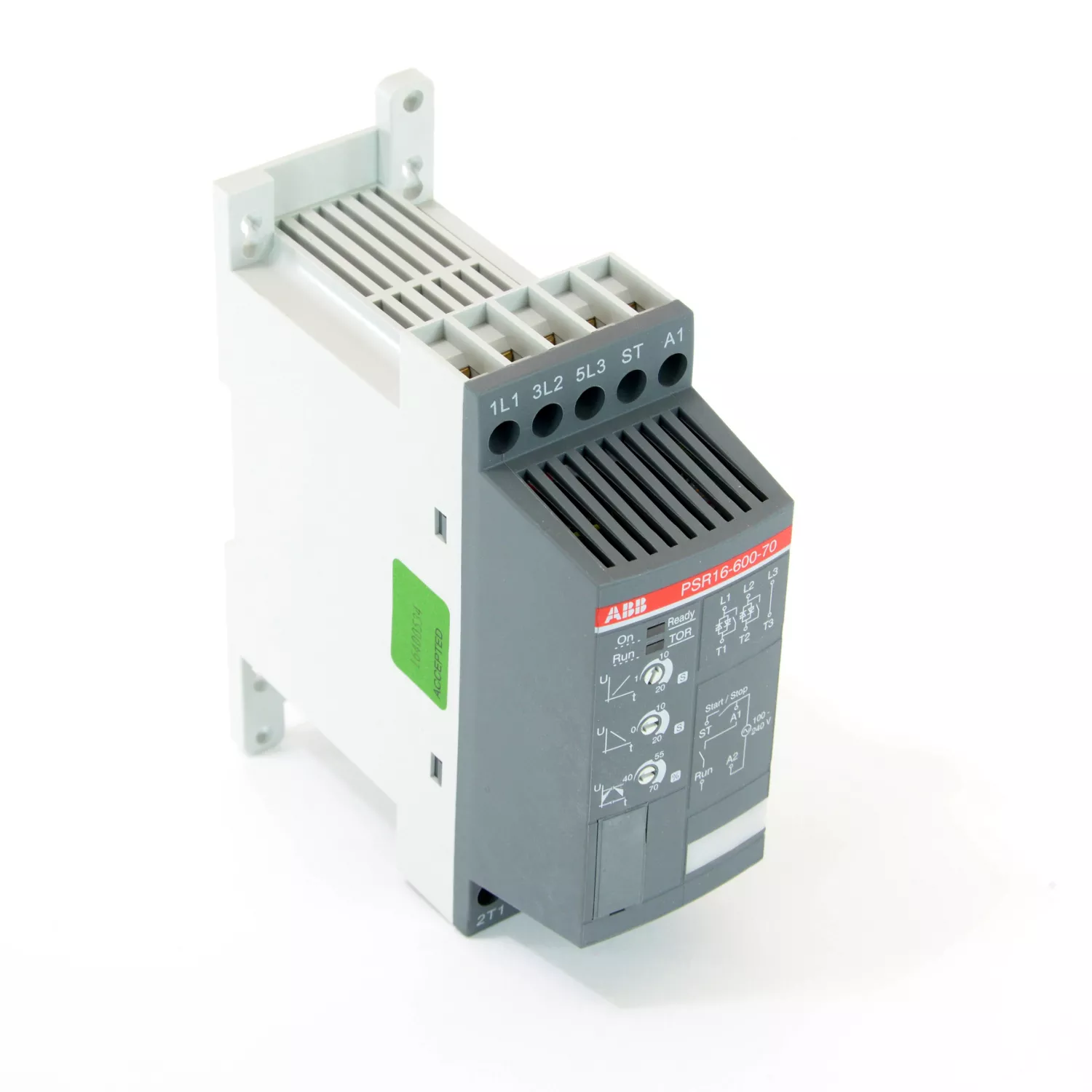

Softstarter PSR16-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage
Specifications
| Brand Name | ABB | Item Name | Soft Starter |
| Type | Motor starter controls | Control Voltage | 100 – 250 VAC |
| Amperage Rating | 16 A | Power Rating | 4 kW at 230 V, 7.5 kW at 400/500 V |
| HP Rating | 10 hp | Dimensions | 114 mm W x 140 mm H x 45 mm D |
| Series/Model | PSR | Frequency Rating | 50/60 Hz |
| Maximum Voltage | 600 V | Indicator Type | Green LED |
| Terminal Connection | Screw | Mounting Type | DIN Rail |
| Degree of Protection | IP20 | Temperature Rating | -25 to 60 °C |
| Environmental Conditions | -40 to 70 °C Storage Temperature | Standards | CE Certified, RoHS Compliant |
| Application | For Stopping Pumps, Designed to Reduce Water Hammering and Will Allow a Superior Stop Compared to the Direct Stop Resulting from a Star Delta Starter or a DOL Starter | UPC | 662019261560 |
