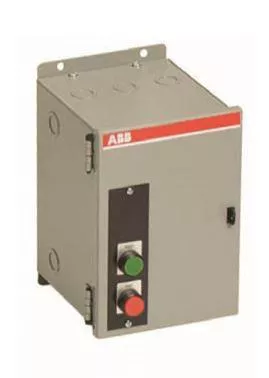

Non-Combination Three Phase Non-Reversing HP Rated Starter, CSA Motor Switching Current 27, Contactor Size AF 30, Type 1, Maximum Motor HP Ratings 200/208V 10, 220/240V 10, 460/480V 20, 575/600V 25, Type 4/12, AC Coil 100-250V
Specifications
| Brand Name | ABB | Sub Brand | System proS |
| Item Name | IEC Starter | Type | Non-Combination, Non-Reversing, HP Rated |
| Coil Voltage | 100 – 250 VAC at 50/60 Hz | Amperage Rating | 27 A |
| Phase | 3 | HP Rating | 10 hp at 200/208 V, 220/240 V, 20 hp at 460/480 V, 25 hp at 575/600 V |
| Dimensions | 6-3/4 in W x 10 in H x 6-1/2 in D | Frequency Rating | 50/60 Hz |
| Maximum Voltage | 600 V | Material | Metal |
| Mounting Type | Wall | Enclosure Type | NEMA 4, 12, UL Type 1 |
| NEMA Rating | NEMA 1 | Temperature Rating | -20 to 40 °C |
| Standards | CAN/CSA C22.2 No. 14-05 Certified | UPC | 888614477544 |
