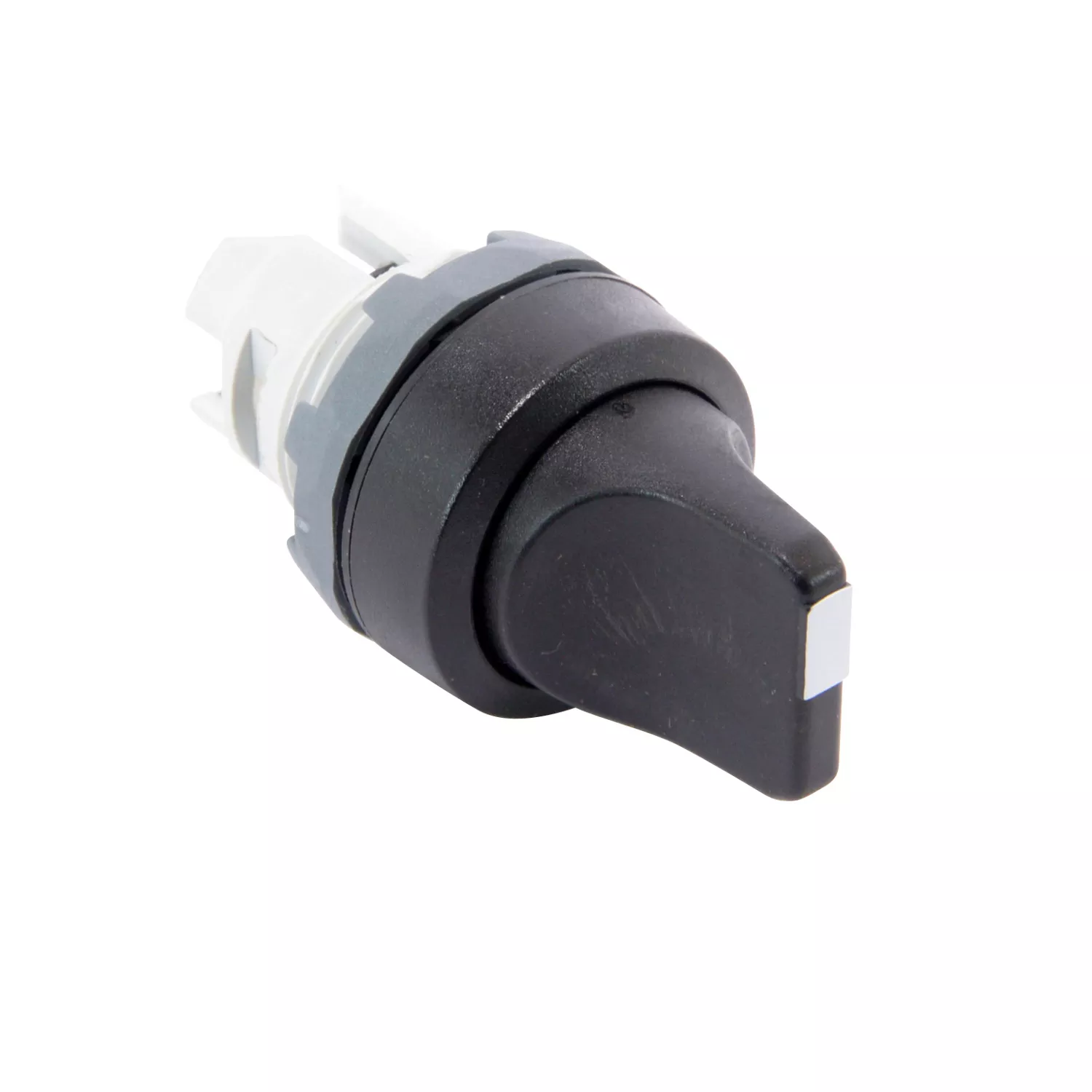

Modular Selector Switch – 3-Pos Momentary, spring return from A and C to B – Short handle – Black – Non-illuminated – Black plastic – No contact block
Specifications
| Brand Name | ABB | Item Name | Non-Illuminated Selector Switch |
| Type | Modular | Size | 0.048×0.03×0.05mm |
| Voltage Rating | 125 VAC, 24 VDC | Amperage Rating | 500 mA |
| Number of Positions | 3 | Action | Momentary with Spring Return |
| Actuator Type | Short Handle | Color | Black |
| Series/Model | M3SS | Degree of Protection | IP20, IP66 |
| Terminal Type | Screw | Bezel Material | Plastic |
| Dimensions | 0.05 m L x 0.048 m W x 0.03 m H | Mounting Type | Horizontal |
| Standards | CE Certified, RoHS Compliant, EU Directive 2011/65/EU | Application | For use with control panels |
| UPC | 662019234038 |
