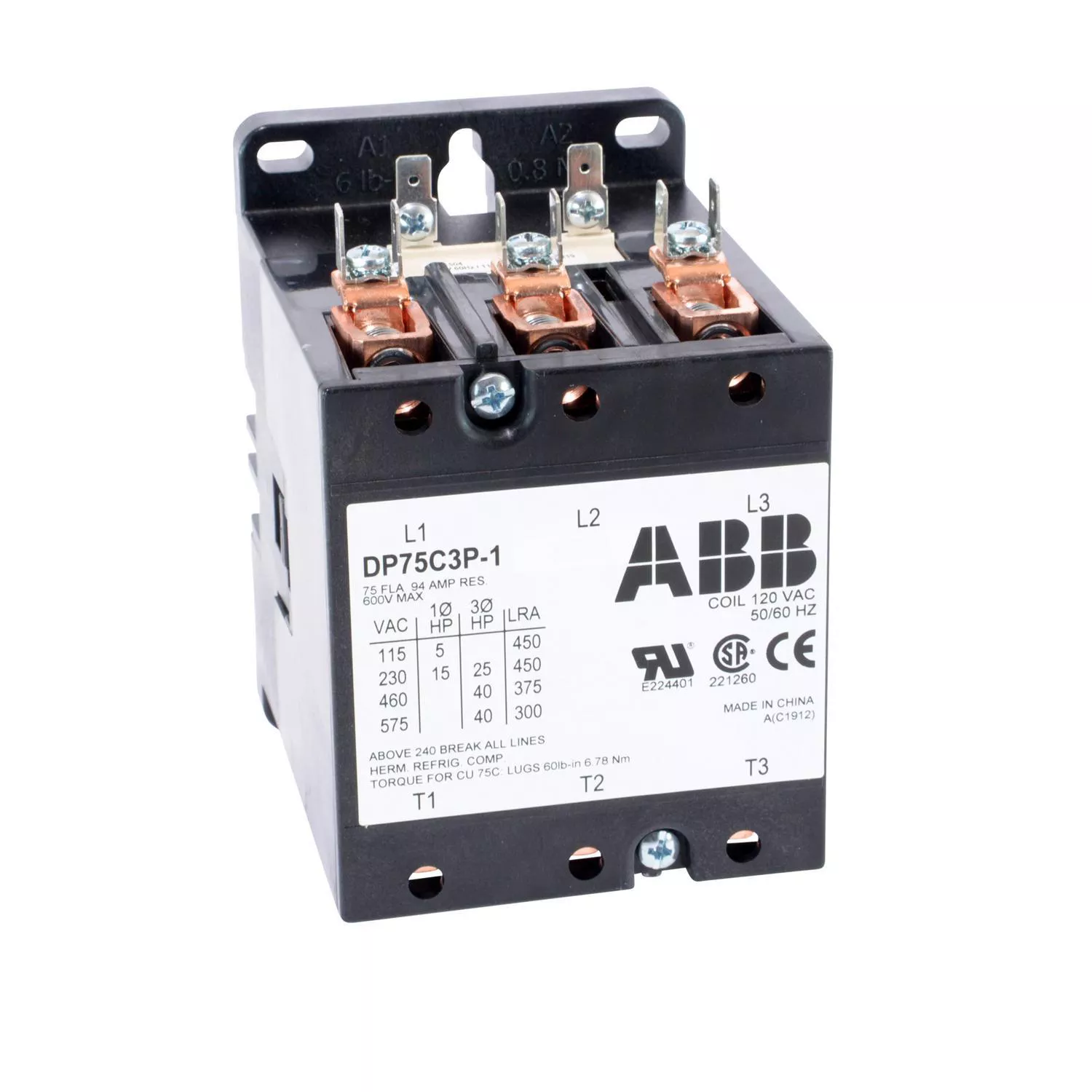

Type DP contactors provide high performance with flexibility and reliability, designed to match numerous applications including:• Motors• Power supplies• Food service equipment• Compressors• Business machines• Resistive heating• Air conditioning• Refrigeration equipment• Welding
Specifications
| Brand Name | ABB | Item Name | Definite Purpose Contactor |
| Type | Non-Reversing | Coil Voltage | 120 VAC |
| Full Load Current | 75 A | Phase | 3 |
| Contact Configuration | 3 NO | Number of Poles | 3 |
| Terminal Connection | Box Lug | Dimensions | 3-3/4 in W x 4.063 in D x 4.702 in H |
| Series/Model | DP | Amperage Rating | 450 A at 240/277 V, 375 A at 480 V, 300 A at 600 V Locked Rotor and 93 A Resistive |
| HP Rating | 20 hp at 200/208 V, 25 hp at 240/277 V, 40 hp at 480/600 V | Conductor Size | 14-1/0 AWG |
| Material | High Arc-Resistant Polyester | Frame Size | 75 A |
| Temperature Rating | 130 °C | Standards | UL 508 Guide No. NLDX2, NLDX8 File E224401, CSA C22.2 No. 221260 (1456104) Class 3211 04/3211 84, CE, Semko Certified, EN60947-4-1:2001 |
| Application | Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment, Welding | UPC | 804325552080 |
