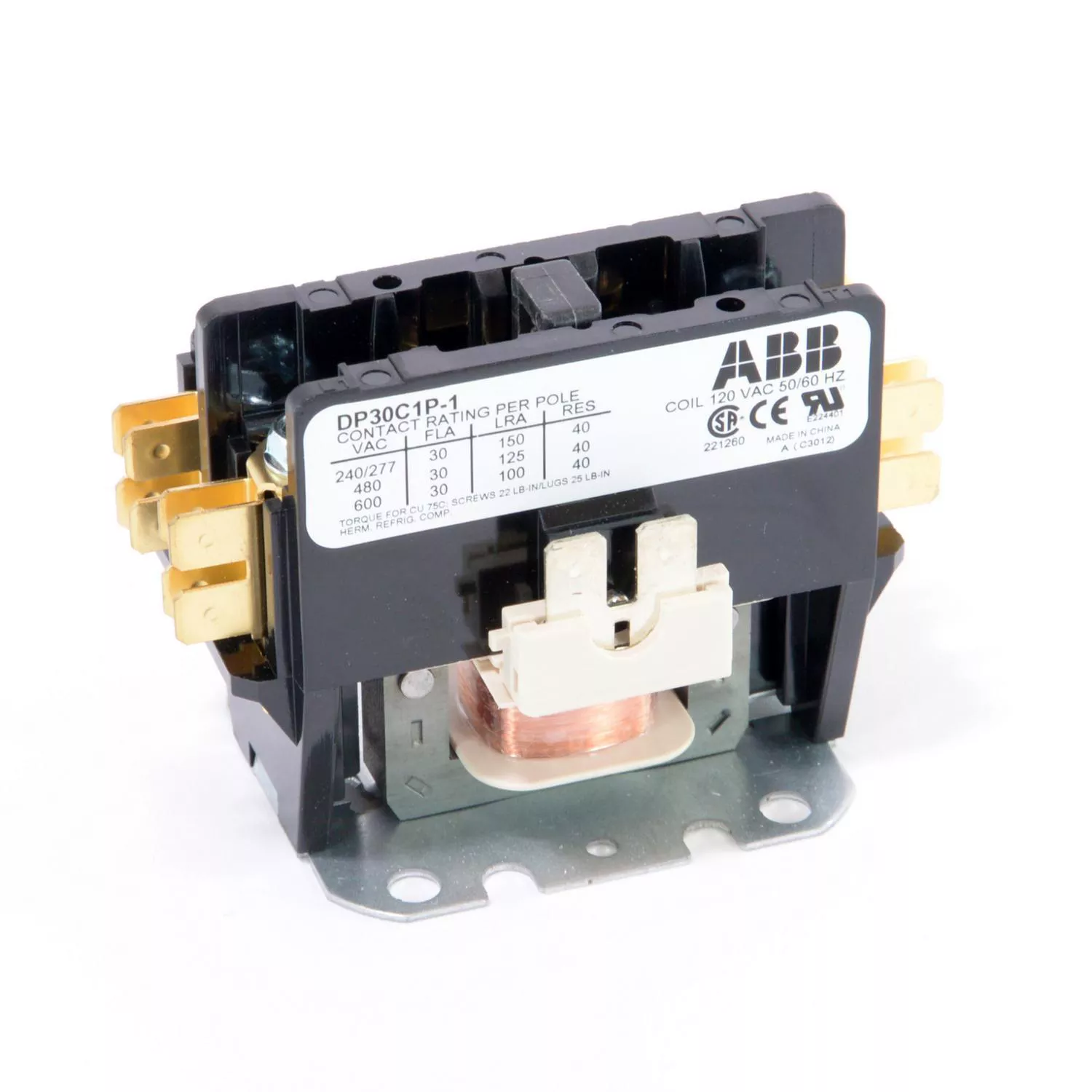

Type DP contactors provide high performance with flexibility and reliability, designed to match numerous applications including:• Motors• Power supplies• Food service equipment• Compressors• Business machines• Resistive heating• Air conditioning• Refrigeration equipment• Welding
Specifications
| Brand Name | ABB | Item Name | Definite Purpose Contactor |
| Type | Non-Reversing | Coil Voltage | 120 VAC |
| Full Load Current | 30 A | Phase | 1 |
| Contact Configuration | 1 NO Main | Number of Poles | 1 |
| Terminal Connection | Screw | Dimensions | 2 in W x 3.3 in D x 2.44 in H |
| Series/Model | DP | Amperage Rating | 125 A at 480 VAC, 100 A at 600 VAC Locked Rotor |
| Frequency Rating | 50/60 Hz | HP Rating | 1 hp at 110/120 VAC, 2 hp 220/240 VAC |
| Temperature Rating | -40 to 65 °C | Standards | UL Listed, CSA Certified |
| Application | For HVAC and Refrigeration Equipment Operation and Control | UPC | 662019754154 |
