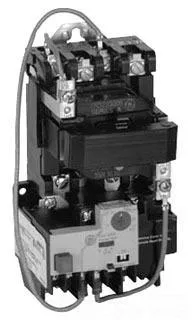

Non-reversing magnetic full voltage starter. NEMA size-3. 115 to 120 V separate control voltage. Open type.
Specifications
| Brand Name | GE | Item Name | Magnetic Motor Starter |
| Type | Full Volatge, Non-Reversing | Coil Voltage | 115 – 120 VAC |
| Amperage Rating | 90 A | Phase | 3 |
| HP Rating | 25 hp at 208 VAC, 30 hp at 40 VAC, 50 hp at 480/600 VAC | Number of Poles | 3 |
| Dimensions | 6.62 in W x 6.5 in D x 11.62 in H | Series/Model | CR306 Series |
| Frequency Rating | 50/60 Hz | Overload Type | Thermal |
| Maximum Voltage | 600 VAC | NEMA Size | NEMA 3 |
| NEMA Size-OLD | NEMA 3 | Mounting Type | DIN-Rail |
| Enclosure Type | Open | Temperature Rating | -4 to 158 °F |
| Standards | cULus Listed, UL Listed | UPC | 783166360507 |
