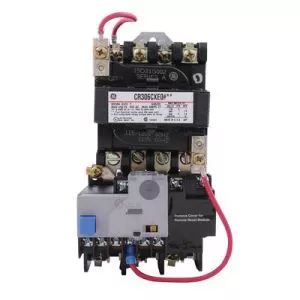

NEMA Rated full voltage magnetic starter. 2:1 Adjustable full load amps with tactile feedback dial. Selectable 10/20/30 protection class. Ambient insensitive within the stated operating temperature range of -20 to +70 °C. Built-in thermal memory to prevent hot motor restarts. Protection against complete phase current loss. Manual reset (standard) and remote reset (optional) 120 VAC. Accuracy: ± 2%. Repeatability: ± 2%. Self-powered at 50% of minimum current range. Size: 1-6 (0.4 to 540 A, 600 V, 50/60 Hz). Unbalance trip signal for PLC operation. Manual trip. Visual trip indication. Standard isolated 1 NO and 1 NC aux. contact (A600, Q600). Built-in line/load straps. Fits with existing 300-Line Starters. Power factor correction terminals (sizes 1-4). DIN rail mountable sizes 1 and 2.
Specifications
| Brand Name | GE | Item Name | NEMA Starter |
| Type | Magnetic, Full Voltage, Non-Reversing, Manual | Coil Voltage | 115 – 120 V |
| Control Voltage | 600 V | Amperage Rating | 27 A |
| Contact Configuration | 1 NO, 1 NC | Phase | 3 |
| Number of Poles | 3 | Dimensions | 3.94 in W x 3.71 in D x 7 in H |
| Series/Model | CR306 | Frequency Rating | 50/60 Hz |
| Overload Amperage | 1.6 – 3.4 A | Trip Class | Class 10, 20, 3 |
| NEMA Size-OLD | NEMA 1 | NEMA Size | NEMA 1 |
| Terminal Connection | Screw, Saddle Clamp | Mounting Type | Surface |
| Enclosure Type | Open | Temperature Rating | -20 to 70 °C |
| Application | For Electrical Distribution and Control | UPC | 783166564585 |
