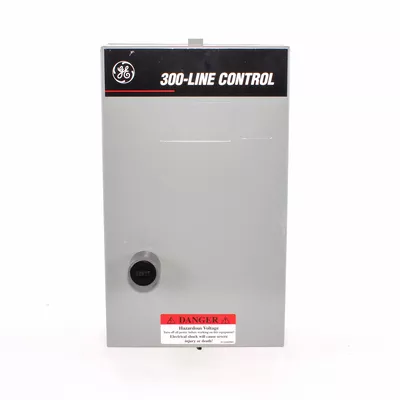

Non-reversing Non-combination Three Phase Magnetic Starter with NEMA type 1 and size 1, 27 A enclosed, 30 A open continuous rating, 115 to 120 V
Specifications
| Brand Name | GE | Item Name | Motor Starter |
| Type | Enclosed, Full Voltage, Magnetic, Non-Reversing | Coil Voltage | 120 VAC |
| Amperage Rating | 27 A | Contact Configuration | 1 NO |
| Phase | 1/3 | HP Rating | 2 hp at 120 V, 3 hp at 230 V 1-Phase, 7.5 hp at 208/240 V, 10 hp at 480/575 V 3-Phase |
| Number of Poles | 3 | Dimensions | 6 in W x 4.63 in D x 10 in H |
| Maximum Voltage | 600 V | NEMA Size-OLD | NEMA 1 |
| NEMA Size | NEMA 1 | Terminal Connection | Screw |
| Mounting Type | Surface | Includes | Overload Relay |
| Standards | CSA Certified, UL Listed | UPC | 783166356906 |
