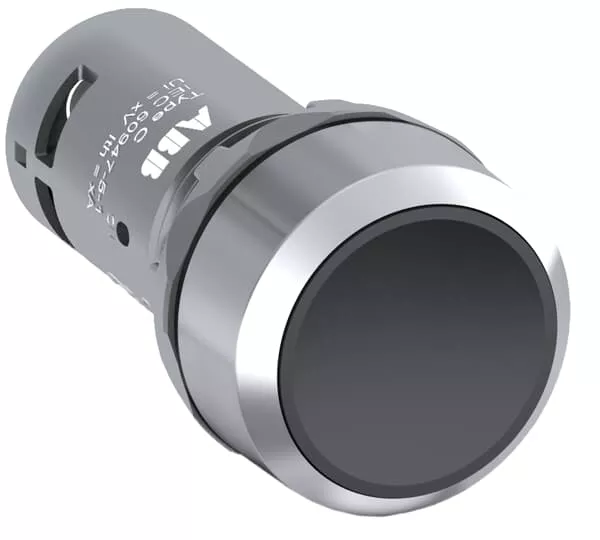

Compact Pushbutton – Momentary – Flush – Black – Non-illuminated – Chrome plastic – 1NO+1NC.
Specifications
| Brand Name | ABB | Item Name | Non-Illuminated Push Button Switch |
| Type | Compact | Nominal Diameter | 22 mm |
| Action | Momentary | Actuator Type | Flush Head |
| Contact Configuration | 1 NO, 1 NC | Contact Rating | 1 A at 240 VAC, 0.2 A at 125 VDC, 0.3 A at 24 VDC |
| Lamp Voltage | 24 – 300 VAC at 50/60 Hz | Dimensions | 0.03 m W x 0.03 m H x 0.055 m D |
| Color | Black | Series/Model | CP1 |
| Operating Cycles | 0.5 Million Mechanical | Degree of Protection | IP20, IP66, IP67, IP69K |
| Lens Type | Round | Bezel Material | Chrome Metal |
| Mounting Type | Panel | Temperature Rating | -25 to 70 °C |
| For Use With | Control Panels | Standards | CCC, CQC, cURus, CE Certified, DNV GL Certified, RoHS EU 2011/65/EU Compliant |
| UPC | 888614203365 |
