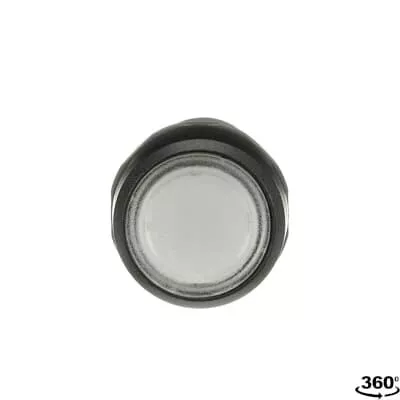

The CP1-11C-10 Pushbutton is: Compact – Pushbutton – Momentary – Flush – Clear – Illuminated – Black Plastic – 1NO – 24 V AC/DC LED This Pushbutton is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Specifications
| Brand Name | Thomas & Betts | Item Name | Illuminated Push Button |
| Type | Compact | Action | Momentary |
| Actuator Type | Flush | Lamp Type | LED |
| Contact Configuration | 1 NO | Contact Rating | 0.3 A at 24 V, 0.2 A at 125 V |
| Lamp Voltage | 24 VAC/VDC | Enclosure Type | NEMA 1, 12, 13, 3R, 4, 4X |
| Dimensions | 0.055 m L x 0.03 m W x 0.03 m H | Color | Clear |
| Conductor Size | 22-14 AWG | Degree of Protection | IP20, IP66, IP67, IP69K |
| Head Material | Black Plastic | Temperature Rating | -25 to 70 °C |
| Standards | EU Directive 2011/65/EU and Amendment 2015/863, RoHS Compliant | UPC | 888614586116 |
