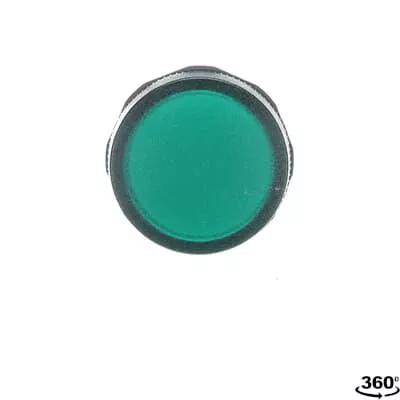

Compact Pilot Light – Pilot light head – Green – Illuminated – Lamptype: LED 12V DC
Specifications
| Brand Name | ABB | Item Name | Indicator Pilot Light |
| Type | Illuminated, Compact | Voltage Rating | 12 VDC |
| Amperage Rating | 16 mA | Lamp Type | LED |
| Lens Color | Green | Mounting Type | Panel |
| Series/Model | CL2 | Nominal Diameter | 22 mm |
| Lens Type | Flat Round | Lens Material | Polycarbonate |
| Average Life | 50000 hr | Terminal Connection | Screw |
| Enclosure Type | IP20, IP66, IP67, IP69K, NEMA 1, 3R, 4, 4X, 12, 13 | Temperature Rating | -20 to 70 °C Operating, -40 to 85 °C Storage |
| Dimensions | 1.18 in dia x 2.05 in L | Standards | UL Listed, CSA Certified, IEC Approved, cULus, CE Marked, RoHS Compliant |
| UPC | 888614469945 |
