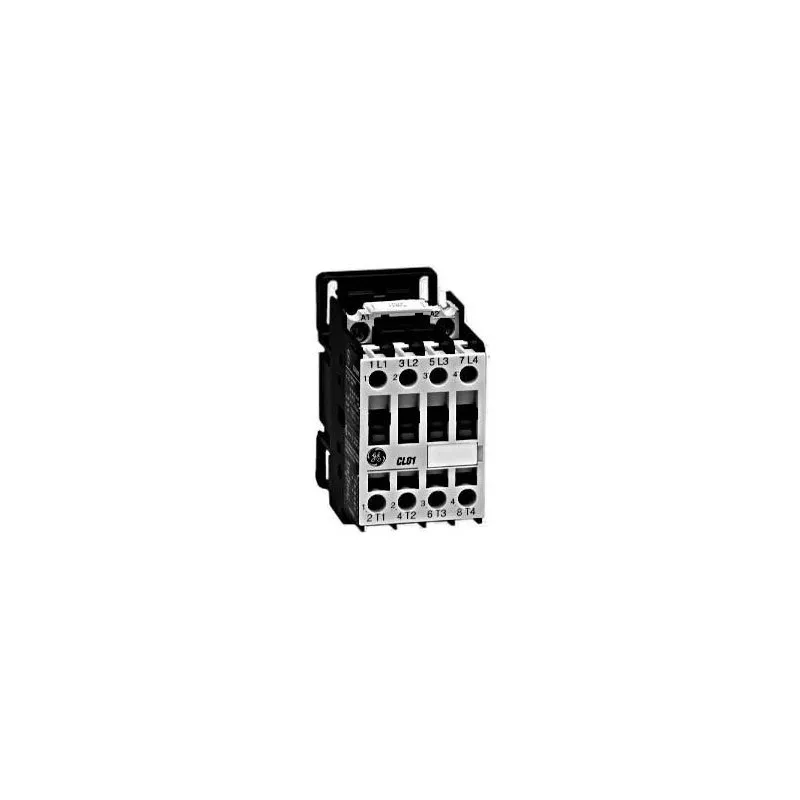

Power circuit (AC) up to 690V. Terminal numbering in accordance with EN 50005 and EN 50012. Fixing by clipping onto 35 mm DIN rail EN 50022-35 or by screws. Degree of protection IP20. Screws protected against accidental contact in accordance with VDE 0106. Three coil terminals. Mounting possibilities of front/side instantaneous auxiliary contact blocks, timed auxiliary contact blocks, mechanical latch, transient suppressor block and interface modules.
Specifications
| Brand Name | GE | Item Name | Contactor |
| Power Rating | 9.5 kW at 220/230 V, 16.5 kW at 380/400 V, 18 kW at 415/440 V, 21.5 kW at 500 V | Contact Configuration | 4 NO |
| Number of Poles | 4 | Terminal Connection | Screw |
| Series/Model | CL Series | Degree of Protection | IP20 |
| Standards | ASE 1025, BS 5424, 775, Bureau Veritas, CE Certified, CENELEC HD 419, CCC Certified, CSA 22.2/14, EN 50005, cULus Listed, IEC/EN 60947-1, 60947-4-1, 60947-5-1, IMQ, Lloyd’s Register, NEMA ICS 1, NFC 63-110, RINA Certified, UL 508, VDE 0660/102 | UPC | 017018043134 |
