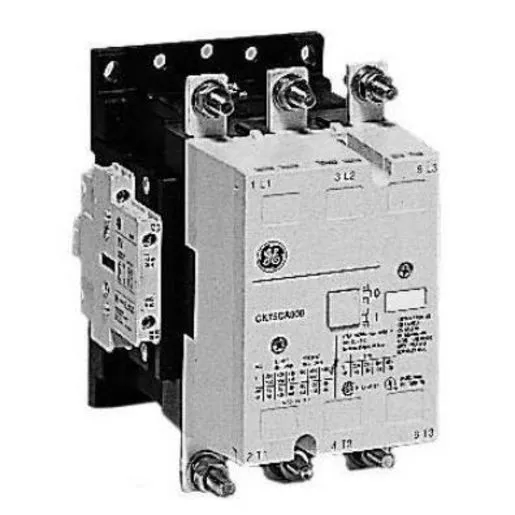

Designed for reliability, the CK Series of contactors have a host of valuable features, the capable electronic module from GE provides better reliability versus any previous electronic modules or pure mechanical systems. The CK Series of contactors feature improved mechanical life, helping increase reliability and reduce the downtime of valuable equipment. The increased contact pressure reduces resistance per phase and thermal load, with built in transient voltage suppression and reduced noise, even in harsh environments. Auxiliary and coil terminals are protected against accidental contact. The CK contactor series with built-in electronic module is the perfect fit for OEM’s working on renewable energy systems that are subject to high-vibration levels such as Wind, Solar, ATS and UPS. The CK Series are also suitable for HVAC, Marine, Medium Voltage, Oil and Gas and Transportation. Compatible with REACH and RoHS directives.
Specifications
| Brand Name | Emerson | Item Name | IEC Contactor |
| Type | Non-Reversing | Coil Voltage | 100 – 250 VAC/DC |
| Power Rating | 55 kW at 220/230 V, 90 kW at 380/400 V, 100 kW at 415/440 V, 110 kW at 500 V | Phase | 3 |
| Contact Configuration | 1 NO, 1 NC Auxiliary | Number of Poles | 3 |
| Mounting Type | DIN Rail | Series/Model | CK |
| Voltage Rating | 460 VAC | Amperage Rating | 185 A |
| Frequency Rating | 50/60 Hz | HP Rating | 75 hp at 220/230 V, 125 hp at 380/400 V, 135 hp at 415/440 V, 150 hp at 500 V |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | -55 to 80 °C Storage Temperature |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, CENELEC HD 419, UL 508 Listed, EN 50005, NF C 63-110, ASE 1025, CSA 22.2/14 Certified, UNE 20109, BS 5424 and 775, NEMA ICS 1, VDE 0660/102, cULus Listed, NOM Certified, RINA, FI, CE |
