The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see “Terminal marking and positioning”).Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corresponding function marking.
Specifications

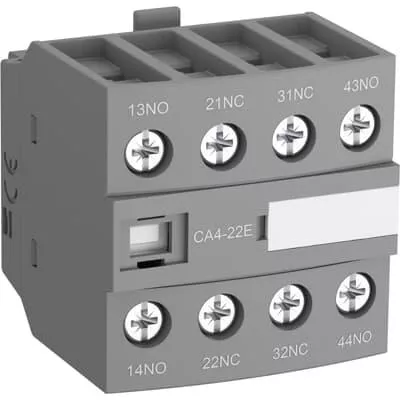

| Brand Name | ABB | Item Name | Auxiliary Contact Block |
| Type | Contactors | Voltage Rating | 24 – 690 V |
| Contact Configuration | 2 NO, 2 NC | Number of Poles | 4 |
| Series | CA4 | Amperage Rating | 2 – 6 A at 127 – 690 VAC, 0.1 – 6 A at 24 – 600 VDC |
| Enclosure Standard | IP20 | Terminal Type | Screw |
| Mounting Type | Front | Dimensions | 43 mm W x 39.5 mm D x 43 mm H |
| For Use With | AF09, AF12, AF16 Contactors | Standards | ABS 15-GE1349500-PDA_90682247, BV 2634H24900B0, CB SE-76635M1, CCC_2013010304651497, UL_20180227_E252354_3_1, CE 1SBD250007U1000, DNV-GL_TAE00001BV-3, EAC_RU C-FR ME77 B03391, LRS_1300087E1, RINA_ELE084013XG, RMRS_1802703280, RoHS 1SBD250007U1000, UL 20091128-E252354-3-1, E252354 Certified |
| Application | For Operation of Auxiliary Circuits and Control Circuits for Standard Industrial Environments | UPC | 804325559799 |
