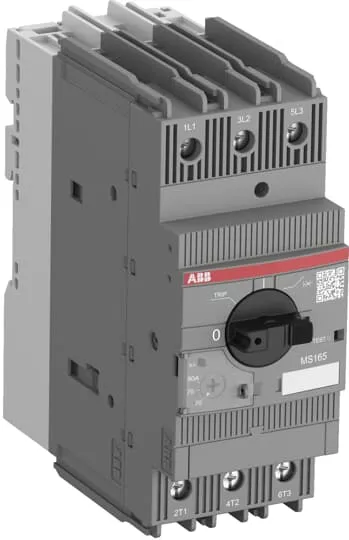

MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A in width of 55 mm. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter (also known as motor protection circuit breaker or manual motor protector) is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS116/MS132/MS165 range.
Specifications
| Brand Name | ABB | Item Name | Manual Motor Starter |
| Control Voltage | 690 VAC/250 VDC | Amperage Rating | 73 A |
| Phase | 3 | HP Rating | 60 hp |
| Number of Poles | 3 | Dimensions | 122 mm L x 55 mm W x 142.65 mm H |
| Frequency Rating | 50/60 Hz | Short-Circuit Current | 100 kA |
| Terminal Connection | Screw | Conductor Size | 16-0 AWG |
| Mounting Type | DIN Rail | Degree of Protection | IP10, IP20 |
| Temperature Rating | -25 to 70 °C | Standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-4-1 |
| UPC | 888614840324 |
