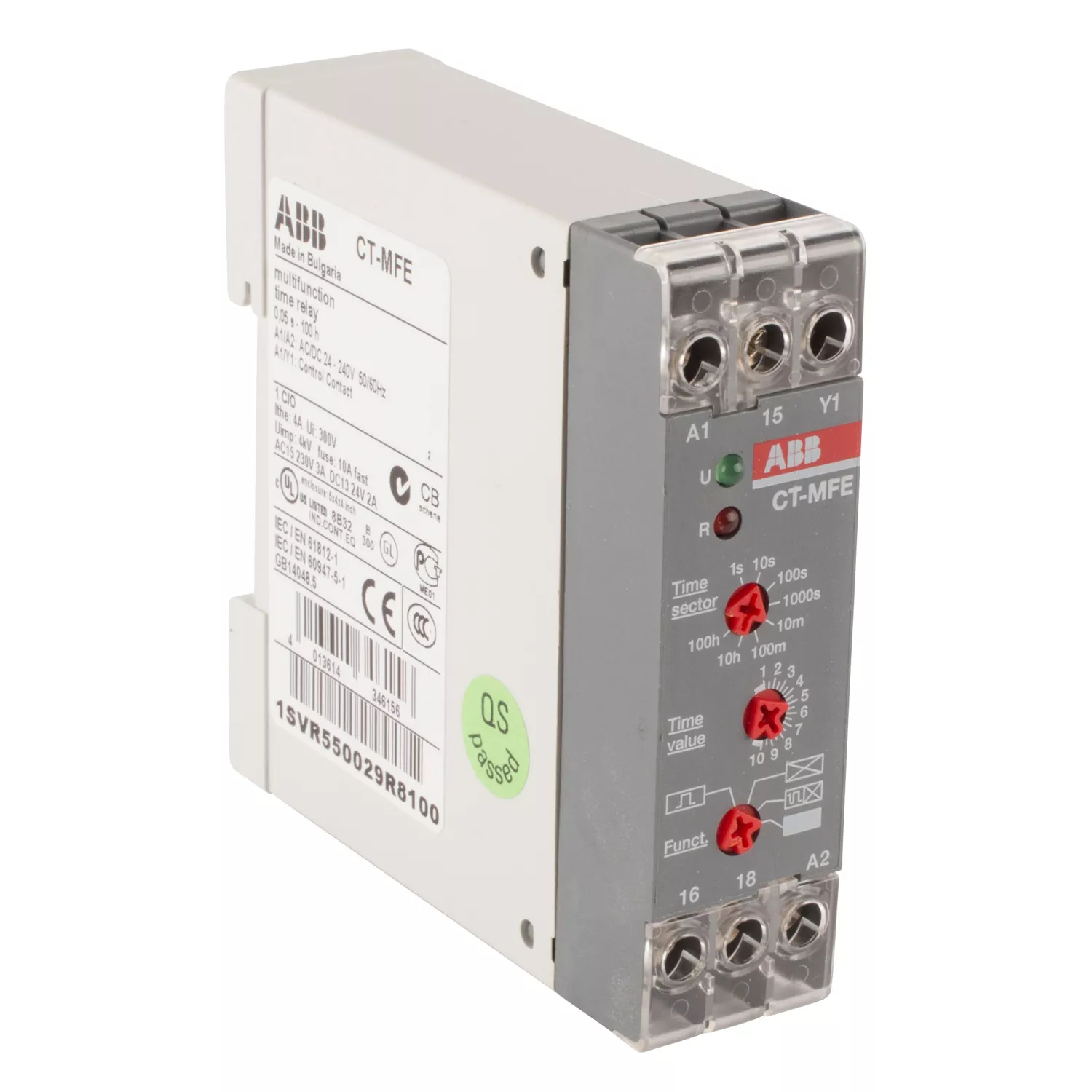

Timer with 24-240V AC/DC rated control supply voltage, timing range of 8 (0.05 s – 100 h), a control input, and 1 SPDT (c/o) output contact
Specifications
| Brand Name | ABB | Sub Brand | CT-E |
| Item Name | Timing Relay | Type | Multi-Function Electronic |
| Voltage Rating | 24 – 240 VAC/VDC | Contact Configuration | 1 Changeover Contact, SPDT |
| Terminal Connection | Screw | Amperage Rating | 3/4 A at 230 VAC, 2/4 A at 24 VDC |
| Contact Material | Silver Cadmium Oxide | Operate Time | 0.05 sec – 100 hr |
| Indicator Type | LED | Dimensions | 78.5 mm L x 22.5 mm W x 78 mm H |
| Mounting Type | DIN Rail | Temperature Rating | -20 to 60 °C |
| Standards | CAN/CSA C22.2 No.14, CE Certified, cUL Listed, EN 50581, IEC/EN 61812-1, RoHS Compliant, UL 508 Listed | Application | For General Timing Applications Where Din Rail Mounting is Used |
| UPC | 662019031491 |
