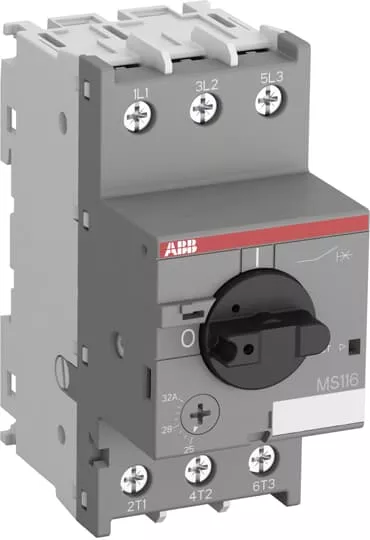

The MS116-20 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 20.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need fora fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 10 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Specifications
| Brand Name | ABB | Item Name | Manual Motor Starter |
| Type | Motor starter controls | Amperage Rating | 6.3 – 10 A |
| Phase | 3 | Number of Poles | 3 |
| Terminal Connection | Screw | Degree of Protection | IP20 |
| Temperature Rating | -25 to 70 °C | Standards | ABS, BV, CB, CCC Certified, cUL Listed, CE Certified, DNV, EAC, GL, RoHS Compliant, UL Listed |
| Application | For Used to Manually Switch On and Off Motors and to Protect Them Reliably and Without the Need for a Fuse From Short-Circuits, Overload and Phase Failures | UPC | 804325613897 |
