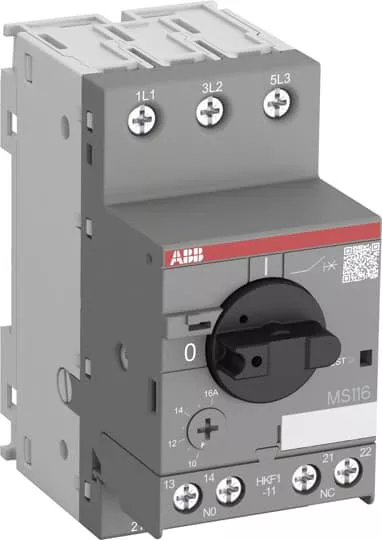

The MS116-16-HKF1-11 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 16.0 A and a pre-assembled front mounted auxiliary contact HKF1-11. This device is used to manually switch onand off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 16 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Specifications
| Brand Name | ABB | Item Name | Manual Motor Starter |
| Coil Voltage | 690 VAC | Amperage Rating | 10 – 16 A |
| Power Rating | 7.5 kW | Contact Configuration | 1 NO, 1 NC |
| Phase | 1, 3 | HP Rating | 3 hp at 200 to 208 V, 5 hp at 220 to 240 V, 10 hp 400 to 480 VAC/550 to 600 VAC |
| Number of Poles | 3 | Actuator Type | Rotary Handle |
| Dimensions | 85.6 mm L x 45 mm W x 90 mm H | Frequency Rating | 50/60 Hz |
| Maximum Voltage | 250 VAC/DC, 600 VAC | Short-Circuit Current | 16 kA at 400 VAC |
| Trip Class | Class 10A | Terminal Connection | Screw |
| Mounting Type | DIN-Rail | Degree of Protection | IP10, IP20 |
| Temperature Rating | -25 to 70 °C | Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 |
| UPC | 888614577978 |
