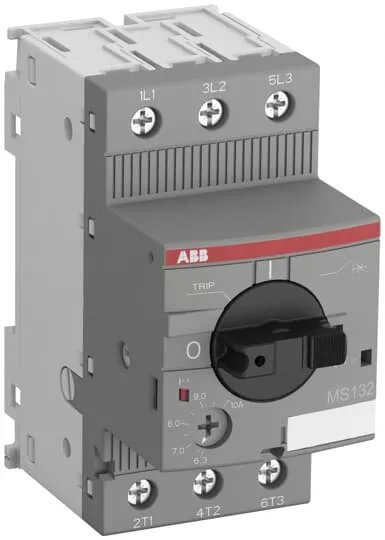

The MS132-0.63 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 0.63 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.
Specifications
| Brand Name | ABB | Item Name | Manual Motor Protector |
| Type | Motor starter controls | Voltage Rating | 690/250 VAC/VDC |
| Number of Poles | 3 | Standards | CCC Listed, cUL Listed, CE Marked, UL Listed, RoHS Compliant |
| Application | This Device Is Used To Manually Switch On and Off Motors and To Protect Them Reliably and Without the Need For a Fuse From Short-circuits, Overload and Phase Failures | UPC | 804325530521 |
