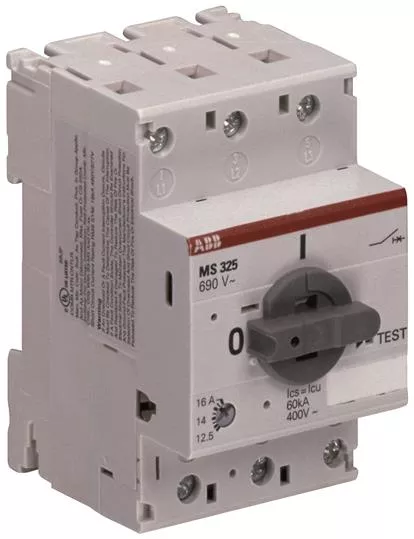

1.6 to 2.5 amps MS 325 manual motor protector that has been replaced by the MS132-2.5 manual motor protector
Specifications
| Brand Name | ABB | Item Name | Manual Motor Starter |
| Type | Type MS325 | Coil Voltage | 690 VAC, 440 VDC |
| Amperage Rating | 1.6 – 2.5 A | Phase | 3 |
| HP Rating | 0.167 hp at 230/240V, 0.5 hp at 230/240V, 1 hp at 460/480V, 1.5 hp at 575/600V | Number of Poles | 3 |
| Actuator Type | Rotary Handle | Dimensions | 75.5 mm L x 54 mm W x 87.5 mm H |
| Frequency Rating | 50/60 Hz | Short-Circuit Current | 100 kA at 230 VAC, 400 VAC, 440 VAC, 500 VAC, 40 kA at 690 VAC |
| Trip Class | Class 10 | Terminal Connection | Screw Terminal |
| Mounting Type | DIN Rail | Degree of Protection | IP20 |
| Temperature Rating | -25 to 50 °C | Environmental Conditions | -50 to 80 °C |
| Standards | IEC/EN 60947-1, EN 60947-2, EN 60947-4-1, UL 60947-1, 60947-4-1 Listed | Application | For Highly Efficient Motor Protection |
| UPC | 662019393230 |
