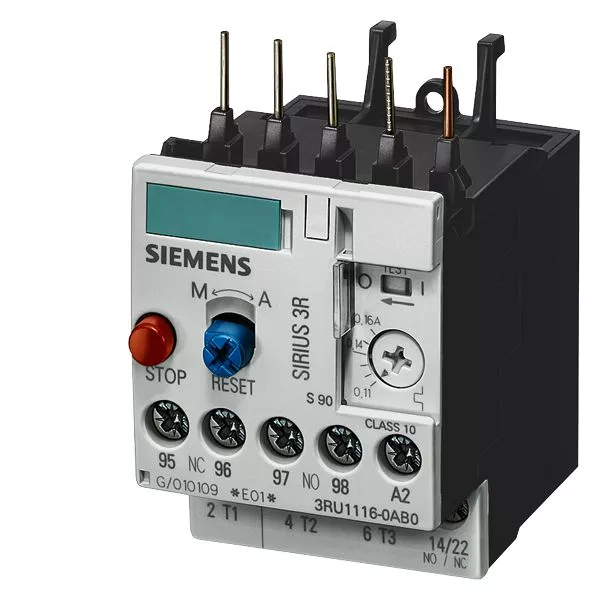

Overload relay with 1NO-1NC contacts for S00 contactor mounting.
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | Thermal Overload Relay | Type | Automatic/Manual Reset |
| Class | Class 10 | Voltage Rating | 690 V Operating, 6 kV Surge |
| Power Rating | 5.5 kW | Contact Configuration | 1 NO, 1 NC Auxiliary |
| Number of Poles | 3 | Amperage Rating | 9 – 12 A |
| Phase | 1 | Wire Size | (2) 20-16 AWG Solid, (2) 18-14 AWG Stranded |
| Terminal Type | Screw | Dimensions | 45 mm W x 78 mm D x 87 mm H |
| Mounting | Direct | Temperature Rating | -20 to 70 °C Ambient |
| For Use With | Size S00 Contactor, Motor Protection | Standards | UL Listed, CSA, CCC, EAC, ATEX, IECEx, CE, Certified, IEC Compliant |
| UPC | 754554411668 |
