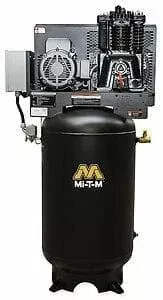

80-Gallon Two Stage Electric Simplex -ACS-23175-80V

The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility

ACS Series – 7.5 HP Simplex Vertical is Powerful and efficient, they are designed to maximize production.

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:ACS-20375-80V200V, 23.0A, 3 PhaseACS-23375-80V230V, 20.0A, 3 PhaseACS-46375-80V460V, 10.0A, 3 Phase

Specifications

• CFM @ 175

  23.5

• Horsepower/Motor

  7.5 HP, 230V, 1Ø, 31.0A

• Pump RPM

  1250

• Compressor

  Two Stage, Cast Iron

• Tank Size

  80 gallon

• Bolt Down (LxW)

  15.63 x 15.63 in.
