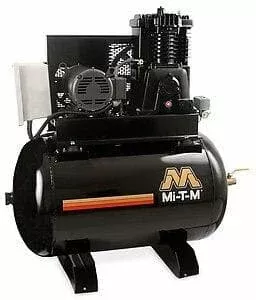

The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility
Powerful and efficient, they are designed to maximize production.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer
Other Models Available:ACS-20375-80H 200V, 23.0A, 3 PhaseACS-23375-80H 230V, 20.0A, 3 PhaseACS-46375-80H 460V, 10.0A, 3 Phase
Specifications
-
CFM @ 175
23.5
-
Horsepower/Motor
7.5 HP, 230V, 1Ø, 31.0A
-
Pump RPM
1250
-
Compressor
Two Stage, Cast Iron
-
Tank Size
80 gallon
-
Bolt Down (LxW)
20.75 x 23.5 in.
