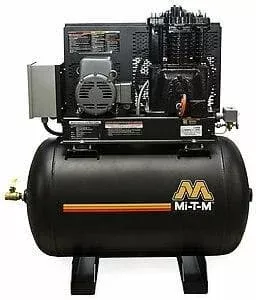

80-Gallon Two Stage Electric Simplex – ACS-23105-80H

The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility

Powerful and efficient, they are designed to maximize production

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:ACS-20305-80H200V, 16.1A, 3 PhaseACS-23305-80H230V, 13.8A, 3 PhaseACS-46305-80H460V, 6.9A, 3 Phase

Specifications

• CFM @ 175

  18.0

• Horsepower/Motor

  5.0 HP, 230V, 1Ø, 23.0A

• Pump RPM

  860

• Compressor

  Two Stage, Cast Iron

• Tank Size

  80 gallon

• Bolt Down (LxW)

  20.75 x 23.5 in.
