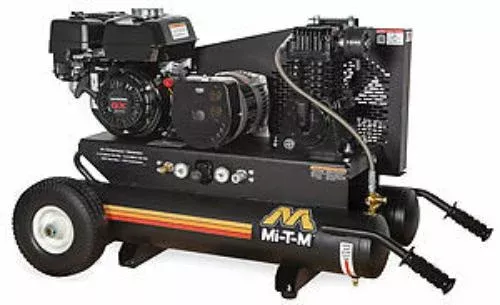

8-Gallon Single Stage Gasoline Combination – AG1-PH65-08M1
Combining two machines into one, this air compressor/generator combination unit is great for completing multiple jobs requiring both air power and electricity.
Compressor PumpCast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
GeneratorBrushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A receptacles
FramePowder coated twin tank receivers · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · 10-inch flat-free tires
ComponentsRegulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16 ½-inch fly wheel · Quality pilot valve unloader
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
Specifications
-
CFM @ PSI
11.9 @ 90
-
CFM @ PSI
10.9 @ 125
-
Alternator Wattage: Max. Output
1800 watts
-
Alternator Wattage: Cont. with Comp. On-Load
600 watts
-
Alternator Wattage: Cont. with Comp. Off-Load
1600 watts
-
Displacement/ Engine
196cc Honda GX200 OHV
