Product Description

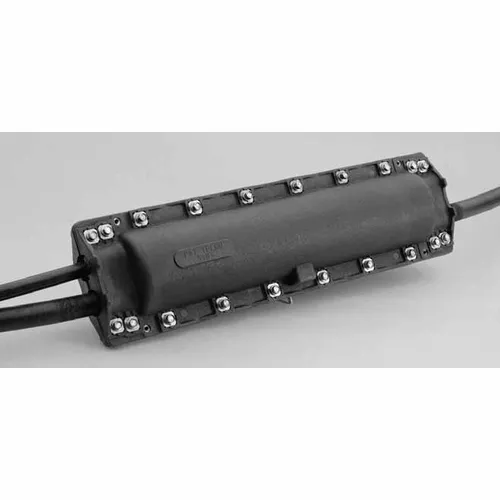

3M 50D3P-510 PRESSURE TIGHT CLOSURE NEW3M 50D3P-510 PRESSURE TIGHT CLOSURE NEWThe 50D3P-510 is a Straight Splice ConfigurationInside Diameter6.25″Overall Length28.5″Sheath Opening19″Max. Sheath Diameter2-3.0 inchesMax Cable Pairs24 GA-1200 prs26GA-1500 prs. Minimum Order 13M ID 80611041908UPC 00051138776367The 50/51P Series Pressurized Closure can be used for aerial andunderground applications. Seven sizes will accommodate cable diametersfrom 10 mm (0.4″) to 71mm (2.8″) and splices up to 1500 pairs. This closure may be used for sheath openings of 330 mm (13″) or lessto a maximum of 483 mm (19″).It is available in straight or branch splice configurations.
