The Perkins 1103 range of electric power engines delivers cost-effective solutions for both prime and standby power generation. Designed to meet EU Stage IIIA / U.S. EPA Tier 3 equivalent emission standards, these engines combine compliance with efficiency.
With exceptional fuel economy in prime power applications and outstanding load acceptance for standby installations, the 1103 range ensures reliable, efficient performance across diverse operating conditions.

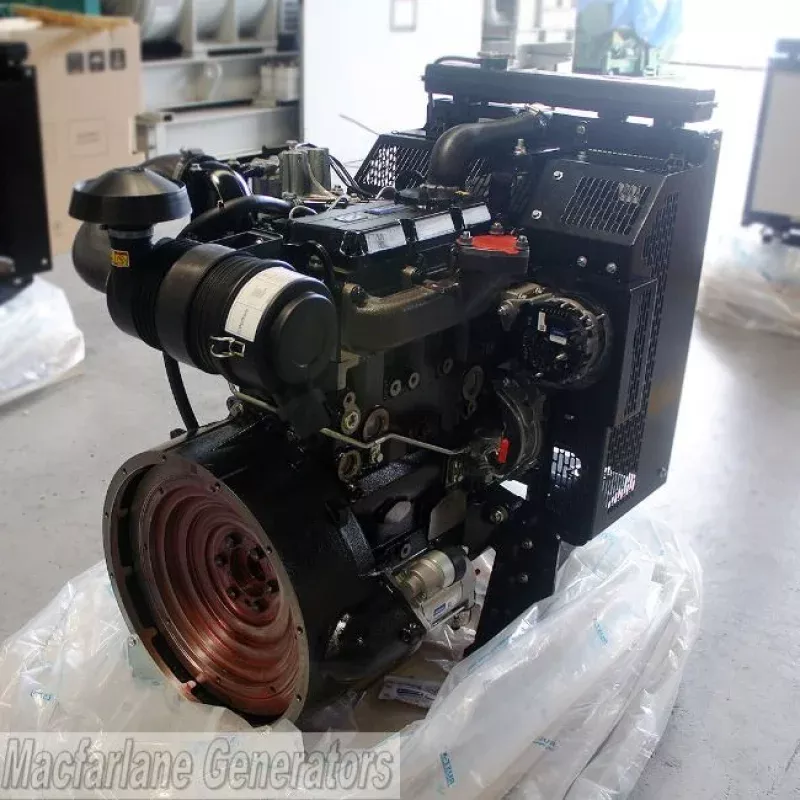

ENGINE 1103A-33G
Specifications
| Gross Mechanical Output | 28 – 36.5 kWm |
|---|---|
| Rated Speed | 1500 rpm |
| Emissions | Fuel Optimised |
| Electrical Output 50HZ | Prime 30kVA Standby 33kVA |
| Cylinders | 3 Vertical Inline |
| Bore & Stroke | 105 x 127mm |
| Displacement | 3.3 I |
| Compression Ratio | 19.25:1 |
| Aspiration | Naturally aspirated |
| Combustion System | Direct injection |
| Rotation | Anti-clockwise |
| Typical Alternator Efficiency | 87% |
| Cooling System | Liquid |
| Weight (kg) | Dry: 412kg |
| Dimensions (LWH) | 1000 x 626 x 951 mm |
