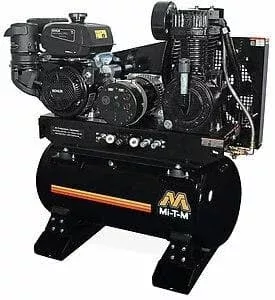

30-Gallon Two Stage Gasoline Combination – AG2-SK14-30M
Featuring an industrial air compressor and generator combination, this machine is durable even in the toughest environments. Whether it’s oil fields or farm fields, this versatile machine will deliver enough power to get the job done. Engineered to reduce the space necessary to fit in work and service trucks, this combination unit will meet the needs of mobile mechanics.
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator:Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles
Frame:Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader
*Equipped with 150-PSI maximum rated regulator
Specifications
-
CFM @ 90 PSI
16.4
-
CFM @ 175 PSI*
15.7
-
Alternator Wattage: Max. Output
4000 watts
-
Alternator Wattage: Cont. with Comp. On-Load
2300 watts
-
Alternator Wattage: Cont. with Comp. Off-Load
3500 watts
-
Receptacles
(2) NEMA 5-20R; (1) NEMA L6-20R
-
Displacement/ Engine
429cc Kohler CH440 OHV
-
Compressor
Two Stage, Cast Iron
