Designed for tough jobs with enough air capacity to run multiple air tools at once

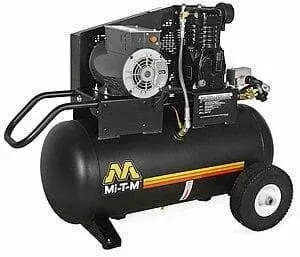

AM1-PE15-20M
Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor:Auto start/stop – continuous run optional · Thermal overload motor protection
Frame:Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tires
Components:Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel · Manual drain valves for proper maintenance · Industrial grade pressure switch
Specifications
-
CFM @ 90 PSI
7.3
-
Horsepower/Motor
1.5 HP, 120V, 13.2A
-
Compressor
Single Stage, Cast Iron
-
Tank Size
20 gallon
-
Plug Type
NEMA 5-15P
