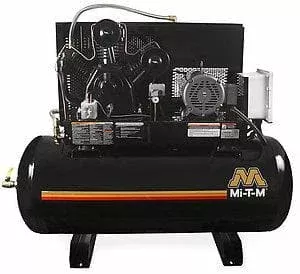

The horizontal 120-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor:Industrial low RPM motor · Magnetic start for thermal overload protection
Frame:Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer
Other Models Available:ADS-20310-120H200V, 30.8A, 3 PhaseADS-23310-120H230V, 26.8A, 3 PhaseADS-46310-120H460V, 13.4A, 3 Phase
Specifications
-
CFM @ 175
34.2
-
Horsepower/Motor
10.0 HP, 230V, 1Ø, 39.0A
-
Pump RPM
990
-
Compressor
Two Stage, Cast Iron
-
Tank Size
120 gallon
-
Bolt Down (LxW)
34.5 x 23.5 in.
